377uH ±20% 680mA
Tested and recommended by National Semiconductor
Base material meets flammability requirements of UL 94V-0
Available in surface mount and through hole versions
得捷:
FIXED IND 377UH 680MA 1 OHM SMD
立创商城:
377uH ±20% 1Ω
艾睿:

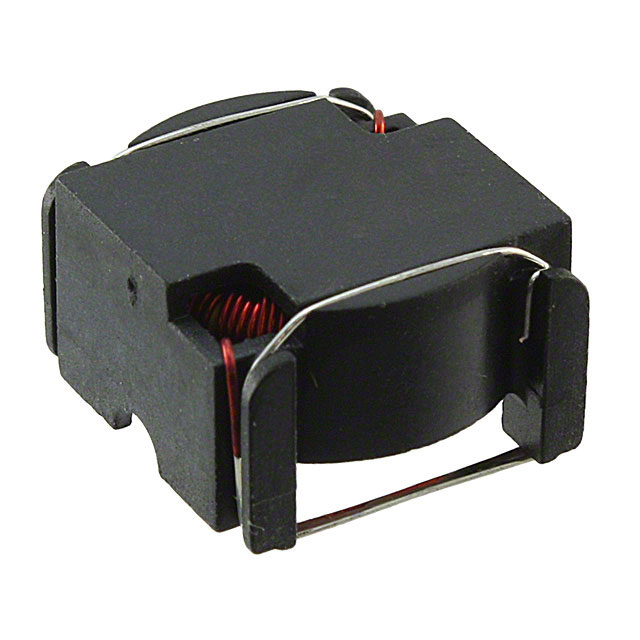

This power PE-53826SNLT surface mount inductor from Pulse is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has an operating temperature range of -40 °C to 130 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device utilizes wirewound technology. This product is 15.75 mm long, 9.91 mm tall and 15.24 mm deep. This SMD inductor has a maximum DC current of 680m A with a maximum resistance of 1Typ Ohm. It has a tolerance of 20%. It has an inductance of 377u H.
安富利:
Ind Power Wirewound 377uH 20% 680mA T/R
Verical:
Inductor Power Wirewound 377uH 20% 680mA 1Ohm DCR T/R
额定电流 680 mA
容差 ±20 %
电感 377 µH
产品系列 PE-53826SNLT
电感公差 ±20 %
电阻DC) 1 Ω
工作温度Max 130 ℃
工作温度Min -40 ℃
电阻DC Max 1 Ω
安装方式 Surface Mount
引脚数 2
封装 Non Standard
高度 9.91 mm
封装 Non Standard
工作温度 -40℃ ~ 130℃
产品生命周期 Not Recommended for New Design
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PE-53826SNLT Pulse Electronics 普思电子 | 当前型号 | 当前型号 |
PE-53826SNL 普思电子 | 类似代替 | PE-53826SNLT和PE-53826SNL的区别 |
PE-53826S 普思电子 | 功能相似 | PE-53826SNLT和PE-53826S的区别 |
PE-53826ST 普思电子 | 功能相似 | PE-53826SNLT和PE-53826ST的区别 |
