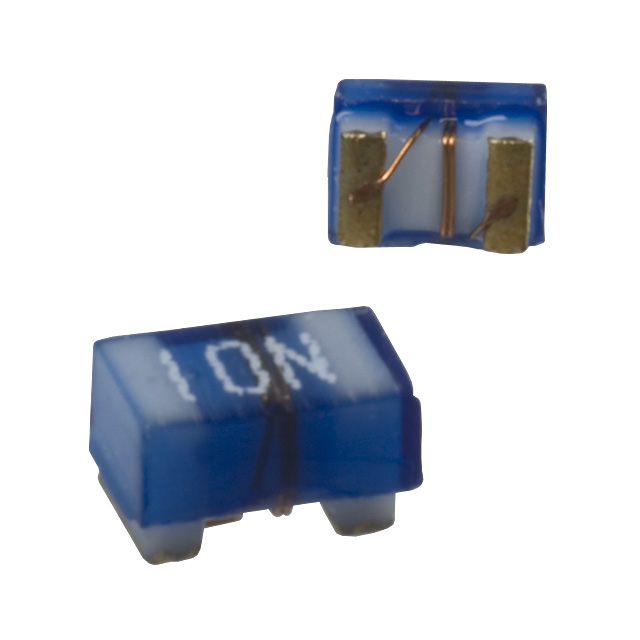

PM0603-R12J-RC

PM0603系列 - 高Q片状电感器 PM0603 Series - High Q Chip Inductors

120nH Unshielded Wirewound Inductor 300mA 790mOhm 0603 1608 Metric

得捷:
FIXED IND 120NH 300MA 790MOHM SM

艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this chip PM0603-R12J-RC surface mount inductor from Bourns is perfect for you! This SMD inductor has an operating temperature range of -40 °C to 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This SMD inductor has a maximum DC current of 300m A with a maximum resistance of 790m Ohm. Its test frequency is 150M Hz, while its minimum self-resonant frequency is 1.35G Hz. It has a tolerance of 5%. This device utilizes wirewound technology. It has an inductance of 120n H. This product is 1.85 mm long, 1.2 mm tall and 1.25 mm deep.

Allied Electronics:
Inductor, Chip High Q; 120nH; 5%; 0.79 Ohm DCR

Chip1Stop:
Inductor Chip Wirewound 120nH 5% 150MHz 32Q-Factor Alumina 300mA 790mOhm DCR 0603 T/R

Verical:
Inductor RF Wirewound 0.12uH 5% 150MHz 32Q-Factor Alumina 0.3A 0.79Ohm DCR 0603 T/R

Newark:
# BOURNS JW MILLER  PM0603-R12J-RC  Surface Mount High Frequency Inductor, PM0603 Series, 120 nH, 300 mA, 0603 [1608 Metric], Wirewound

MASTER:
Inductor RF Wirewound 0.12uH 5% 150MHz 32Q-Factor Alumina 0.3A 0.79Ohm DCR 0603 T/R

Electro Sonic:
Inductor RF Wirewound 0.12uH 5% 150MHz 32Q-Factor Alumina 0.3A 0.79Ohm DCR 0603 T/R
