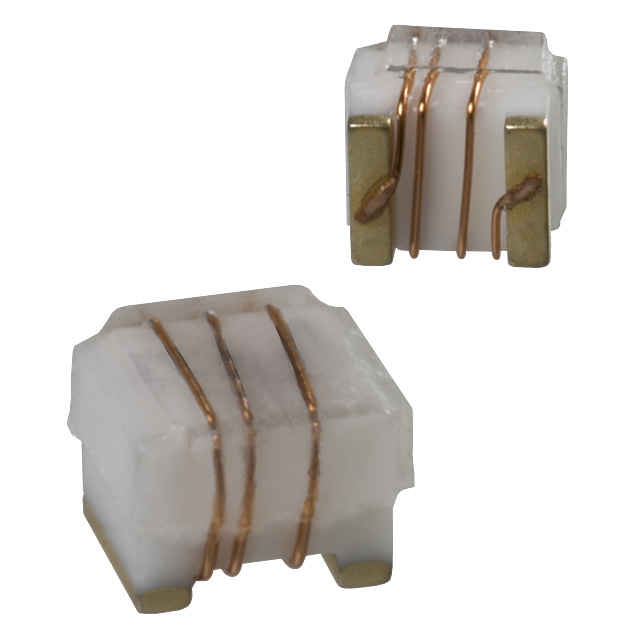

PM1008-68NK-RC

高Q值的片式电感器 High Q Chip Inductors

68 nH 无屏蔽 绕线 器 600 mA 150 毫欧 1008（2520 公制）

得捷:
FIXED IND 68NH 600MA 150MOHM SMD

艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this chip PM1008-68NK-RC surface mount inductor from Bourns is perfect for you! This SMD inductor has an operating temperature range of -40 °C to 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has an inductance of 68n H. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 1.3G Hz. This SMD inductor has a maximum DC current of 600m A with a maximum resistance of 200m Ohm. This device utilizes wirewound technology. It has a tolerance of 10%. This product is 2.7 mm long, 1.8 mm tall and 2.2 mm deep.

Chip1Stop:
Inductor Chip Wirewound 68nH 10% 100MHz 60Q-Factor Ceramic 600mA 200mOhm DCR 1008 T/R

Verical:
Inductor RF Wirewound 0.068uH 10% 100MHz 60Q-Factor Ceramic 0.6A 0.2Ohm DCR 1008 T/R

Electro Sonic:
Inductor RF Wirewound 0.068uH 10% 100MHz 60Q-Factor Ceramic 0.6A 0.2Ohm DCR 1008 T/R
