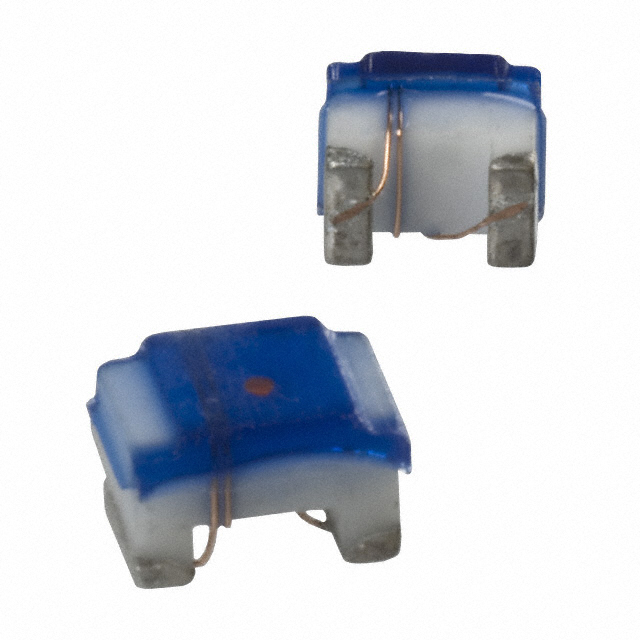

PM0805-47NM-RC

高Q值的片式电感器 High Q Chip Inductors

47 nH 无屏蔽 绕线 器 500 mA 150 毫欧 0805（2012 公制）

得捷:
FIXED IND 47NH 500MA 150MOHM SMD

艾睿:
This chip PM0805-47NM-RC surface mount inductor from Bourns is ideal for applications where space is a major influence of circuit design. This SMD inductor has an operating temperature range of -40 °C to 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It has an inductance of 47n H. This device utilizes wirewound technology. It has a tolerance of 20%. This product is 2.3 mm long, 1.5 mm tall and 1.7 mm deep. This SMD inductor has a maximum DC current of 500m A with a maximum resistance of 150m Ohm. Its test frequency is 200M Hz, while its minimum self-resonant frequency is 1.7G Hz.

安富利:
Ind Chip Wirewound 47nH 20% 200MHz 60Q-Factor Alumina 500mA 0805 T/R

Chip1Stop:
Inductor Chip Wirewound 47nH 20% 200MHz 60Q-Factor Alumina 500mA 150mOhm DCR 0805 T/R

Verical:
Inductor Chip Wirewound 47nH 20% 200MHz 60Q-Factor Alumina 500mA 150mOhm DCR 0805 T/R

MASTER:
Inductor RF Wirewound 0.047uH 20% 200MHz 60Q-Factor Alumina 0.5A 0.31Ohm DCR 0805 T/R

Electro Sonic:
Inductor RF Wirewound 0.047uH 20% 200MHz 60Q-Factor Alumina 0.5A 0.31Ohm DCR 0805 T/R
