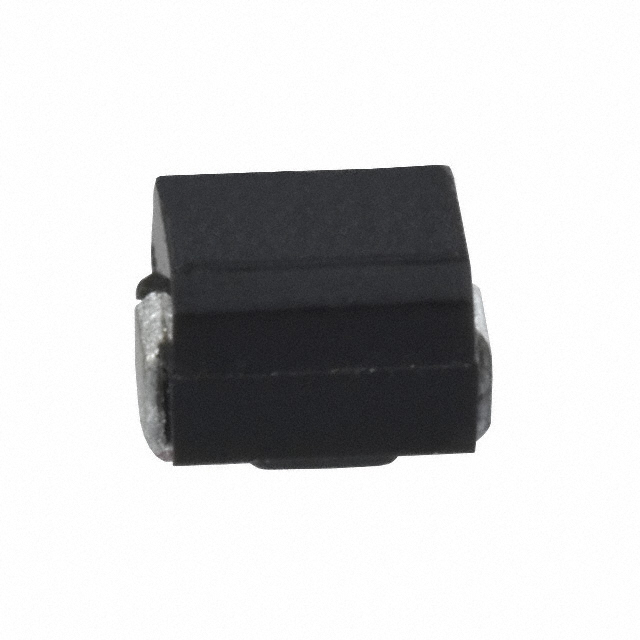

PM1210-1R0J-RC

BOURNS JW MILLER  PM1210-1R0J-RC  电感, SMD, 1uH, 5%容差

1µH Unshielded Wirewound Inductor 230mA 690mOhm Max 1210 3225 Metric

得捷:
FIXED IND 1UH 230MA 690 MOHM SMD

立创商城:
1nH ±5% 400mA 700mΩ

贸泽:
Fixed Inductors 1.0uH 5%

e络盟:
电感, SMD, 1uH, 5%容差

艾睿:
Make any circuit look clean and compact using this chip PM1210-1R0J-RC surface mount inductor from Bourns. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 100 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has an inductance of 1u H. This device is made with bobbin core technology. Its test frequency is 7.96M Hz, while its minimum self-resonant frequency is 115M Hz. This SMD inductor has a maximum DC current of 230m A with a maximum resistance of 690m Ohm. It has a tolerance of 5%. This product is 3.2Typ mm long, 2.2Typ mm tall and 2.5Typ mm deep.

Allied Electronics:
Inductor, Chip; 1.0uH; 5%; 0.69 Ohm DCR Max

安富利:
Ind Chip Molded Bobbin Core 1uH 5% 7.96MHz 30Q-Factor Ferrite 230mA 1210 T/R

Chip1Stop:
Inductor Chip Molded Bobbin Core 1uH 5% 7.96MHz 30Q-Factor Ferrite 230mA 690mOhm DCR 1210 T/R

Verical:
Inductor Chip Molded Bobbin Core 1uH 5% 7.96MHz 30Q-Factor Ferrite 230mA 690mOhm DCR 1210 T/R

Newark:
# BOURNS JW MILLER  PM1210-1R0J-RC  Surface Mount High Frequency Inductor, PM1210 Series, 1 µH, 230 mA, 1210 [3225 Metric], Wirewound

MASTER:
Inductor RF Molded Bobbin Core 1uH 5% 7.96MHz 30Q-Factor Ferrite 0.4A 0.7Ohm DCR 1210 T/R

Electro Sonic:
Inductor RF Molded Bobbin Core 1uH 5% 7.96MHz 30Q-Factor Ferrite 0.4A 0.7Ohm DCR 1210 T/R
