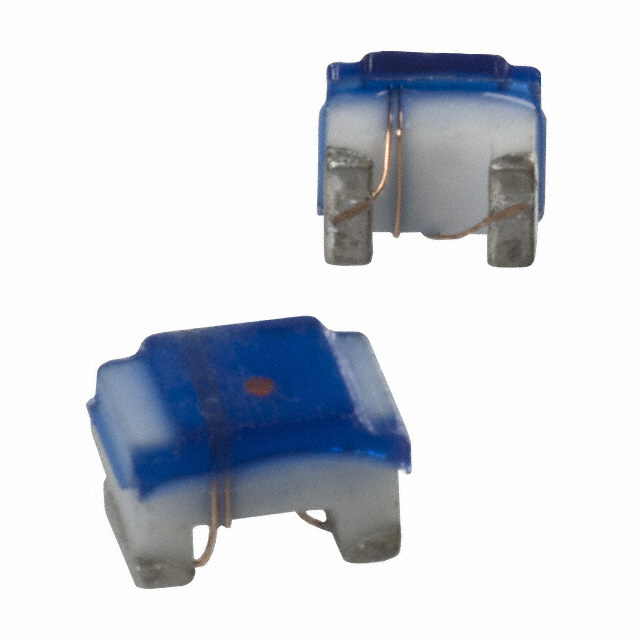

PM0805-6N8M-RC

高Q值的片式电感器 High Q Chip Inductors

无屏蔽 绕线 器 60 毫欧 0805（2012 公制）

得捷:
FIXED IND 6.8NH 600MA 60MOHM SMD

立创商城:
6.8nH ±20% 600mA 110mΩ

艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this chip PM0805-6N8M-RC surface mount inductor from Bourns is perfect for you! This SMD inductor has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It has an inductance of 6.8n H. This device utilizes wirewound technology. Its test frequency is 250M Hz, while its minimum self-resonant frequency is 5.8G Hz. It has a tolerance of 20%. This SMD inductor has a maximum DC current of 600m A with a maximum resistance of 60m Ohm. This product is 2.3 mm long, 1.5 mm tall and 1.7 mm deep.

安富利:
Ind Chip Wirewound 6.8nH 20% 250MHz 60Q-Factor Alumina 600mA 0805 T/R

Chip1Stop:
Ind Chip Wirewound 6.8nH 20% 250MHz 60Q-Factor Alumina 600mA 2.0 x 1.2 mm T/R

Verical:
Inductor RF Wirewound 0.0068uH 20% 250MHz 50Q-Factor Alumina 0.6A 0.11Ohm DCR 0805 T/R

Electro Sonic:
Inductor RF Wirewound 0.0068uH 20% 250MHz 50Q-Factor Alumina 0.6A 0.11Ohm DCR 0805 T/R
