PM1812-820J-RC

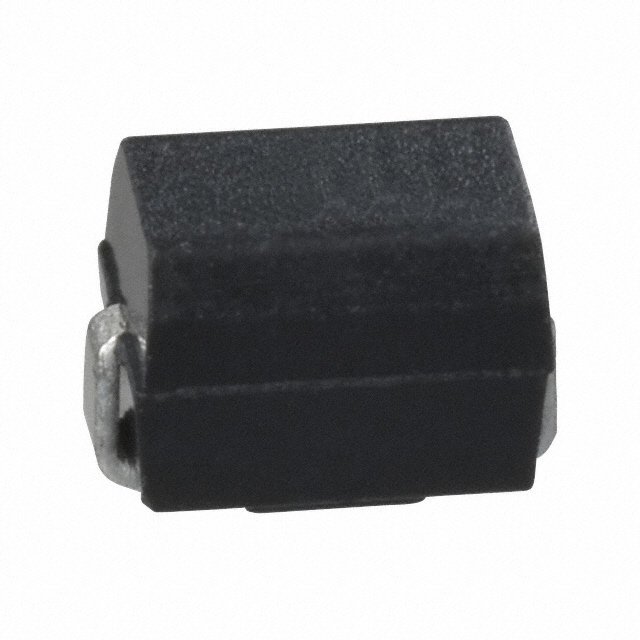

PM1812-820J-RC图片1
PM1812-820J-RC图片2
PM1812-820J-RC图片3
PM1812-820J-RC图片4
PM1812-820J-RC图片5
PM1812-820J-RC图片6
PM1812-820J-RC概述

SMT贴片电感 SMT Chip Inductors

82 µH 无屏蔽 - 器 120 mA 7 欧姆最大 1812(4532 公制)


得捷:
FIXED IND 82UH 120MA 7 OHM SMD


立创商城:
82uH ±5% 120mA 7Ω


艾睿:
Use this general purpose chip PM1812-820J-RC surface mount inductor from Bourns to make any circuit look clean and compact. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It has an inductance of 82u H. This SMD inductor has a maximum DC current of 120m A with a maximum resistance of 7 Ohm. Its test frequency is 2.52M Hz, while its minimum self-resonant frequency is 8M Hz. This product is 4.5Typ mm long, 3.4 mm tall and 3.2Typ mm deep. It has a tolerance of 5%. This device is made with wirewound technology.


Verical:
Inductor General Purpose Chip Molded Wirewound 82uH 5% 2.52MHz 50Q-Factor Ferrite 0.12A 7Ohm DCR 1812 T/R


Electro Sonic:
Inductor General Purpose Chip Molded Wirewound 82uH 5% 2.52MHz 50Q-Factor Ferrite 120mA 7Ohm DCR 1812 T/R


PM1812-820J-RC中文资料参数规格
技术参数

额定电流 120 mA

电感 82 µH

自谐频率 27 MHz

Q值 50.0

电感公差 ±5 %

测试频率 2.52 MHz

电阻DC) 7 Ω

工作温度Max 125 ℃

工作温度Min -40 ℃

电阻DC Max 7 Ω

封装参数

安装方式 Surface Mount

引脚数 2

封装公制 4832

封装 1812

外形尺寸

长度 4.5 mm

宽度 3.2 mm

高度 3.4 mm

封装公制 4832

封装 1812

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买PM1812-820J-RC
型号: PM1812-820J-RC
制造商: Bourns J.W. Miller 伯恩斯
描述:SMT贴片电感 SMT Chip Inductors
