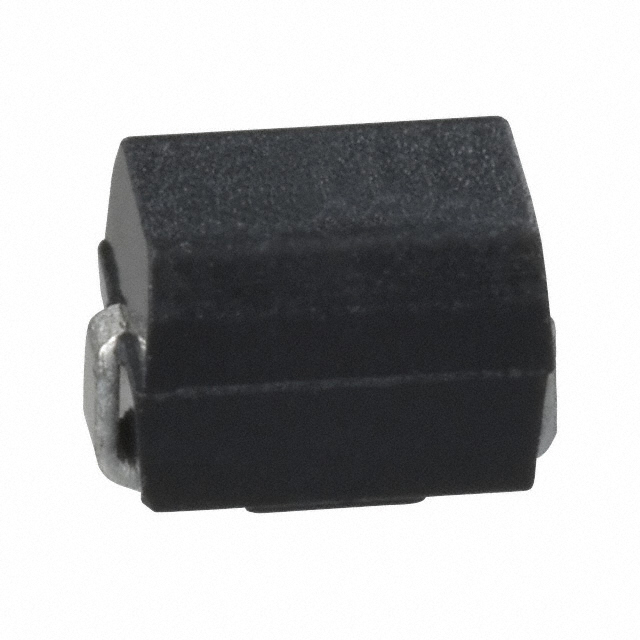

PM1812-1R8J-RC

SMT贴片电感 SMT Chip Inductors

1.8 µH 无屏蔽 器 390 mA 650 毫欧最大 1812（4532 公制）

得捷:
FIXED IND 1.8UH 390MA 650MOHM SM

立创商城:
1.8uH ±5% 390mA 650mΩ

艾睿:
This general purpose chip PM1812-1R8J-RC surface mount inductor from Bourns is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This device is made with wirewound technology. It has an inductance of 1.8u H. This SMD inductor has a maximum DC current of 390m A with a maximum resistance of 650m Ohm. It has a tolerance of 5%. Its test frequency is 7.96M Hz, while its minimum self-resonant frequency is 60M Hz. This product is 4.5Typ mm long, 3.4 mm tall and 3.2Typ mm deep.

Chip1Stop:
Inductor General Purpose Chip Molded Wirewound 1.8uH 5% 7.96MHz 50Q-Factor Ferrite 390mA 650mOhm DCR 1812 T/R

Verical:
Inductor General Purpose Chip Molded Wirewound 1.8uH 5% 7.96MHz 50Q-Factor Ferrite 0.39A 0.65Ohm DCR 1812 T/R

MASTER:
Inductor General Purpose Chip Molded Wirewound 1.8uH 5% 7.96MHz 50Q-Factor Ferrite 390mA 650mOhm DCR 1812 T/R

Electro Sonic:
Inductor General Purpose Chip Molded Wirewound 1.8uH 5% 7.96MHz 50Q-Factor Ferrite 390mA 650mOhm DCR 1812 T/R
