BOURNS JW MILLER PM54-101K-RC 功率电感, 100uH 520mA 10% 9MHz
**Features:
**
* Formerly J.W. Miller Model
* Small Diameter of Only 5.8 mm Maximum
* Profile of 4.8 mm**
Applications:
**
* Input/Output of DC/DC Converters
* Power Supplies for: Portable Communication Equipment, Camcorders, LCD TVs and Car Radios
得捷:
FIXED IND 100UH 520MA 700MOHM SM
立创商城:
100uH ±10% 520mA 700mΩ
e络盟:
功率电感, 100uH 520mA 10% 9MHz
艾睿:
This power PM54-101K-RC surface mount inductor from Bourns is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has an operating temperature range of -40 °C to 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has an inductance of 100u H. This product is 4.8 mm tall with a diameter of 5.8 mm. It has a tolerance of 10%. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 9M Hz. This device utilizes bobbin core technology. This SMD inductor has a maximum DC current of 520m A with a maximum resistance of 700m Ohm.
Allied Electronics:
Inductor, Pwr, SMT; 100uH; 10%; 0.52Adc; 1KhzTest; 9MHzSRF; 0.70 Ohm DCR
安富利:
Ind Power Bobbin Core 100uH 10% 1KHz Ferrite 520mA T/R
Verical:
Inductor Power Bobbin Core 100uH 10% 1KHz 20Q-Factor Ferrite 520mA 700mOhm DCR T/R
Newark:
# BOURNS JW MILLER PM54-101K-RC Surface Mount Power Inductor, PM54 Series, 100 µH, 520 mA, 680 mA, Unshielded, 0.7 ohm
MASTER:
Inductor Power Bobbin Core 100uH 10% 1KHz 20Q-Factor Ferrite 520mA 700mOhm DCR T/R
Electro Sonic:
Inductor Power Bobbin Core 100uH 10% 1KHz 20Q-Factor Ferrite 520mA 700mOhm DCR T/R
额定电流 520 mA
容差 ±10 %
电感 100 µH
自谐频率 9 MHz
Q值 20.0
屏蔽 No
电感公差 ±10 %
测试频率 1 kHz
电阻DC) 700 mΩ
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.7 Ω
安装方式 Surface Mount
引脚数 2

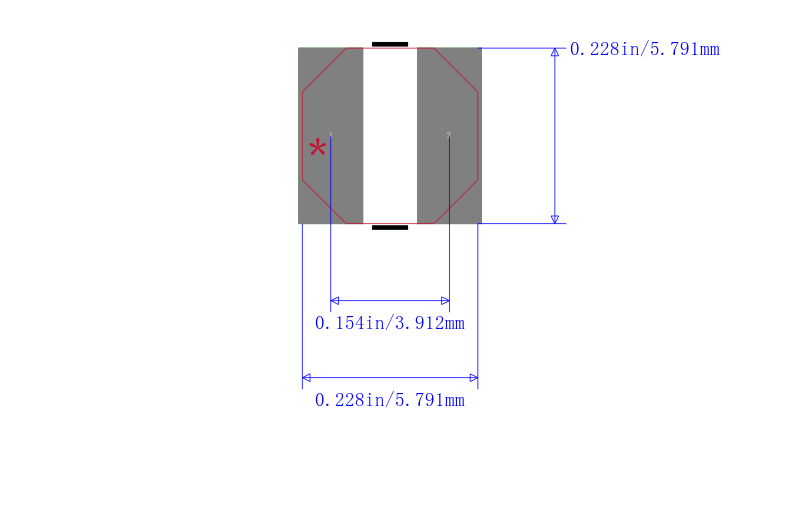

封装 5.8mm x 5.8mm x 4.8mm
长度 5.80 mm
宽度 5.20 mm
高度 4.8 mm
直径 5.80 mm
封装 5.8mm x 5.8mm x 4.8mm
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8504508000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PM54-101K-RC Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
SDR0604-101KL 伯恩斯 | 类似代替 | PM54-101K-RC和SDR0604-101KL的区别 |
SDR0604-101 伯恩斯 | 类似代替 | PM54-101K-RC和SDR0604-101的区别 |
MCSD54-101KU Multicomp | 功能相似 | PM54-101K-RC和MCSD54-101KU的区别 |
