PM3340-101M-RC

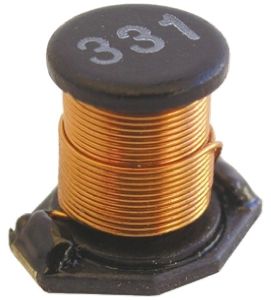

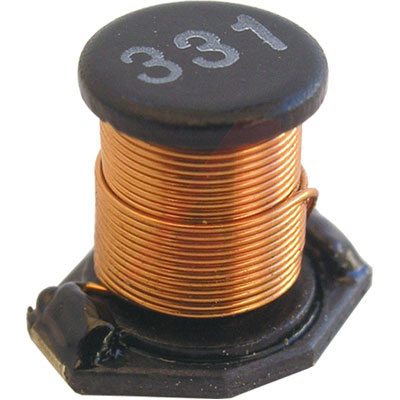

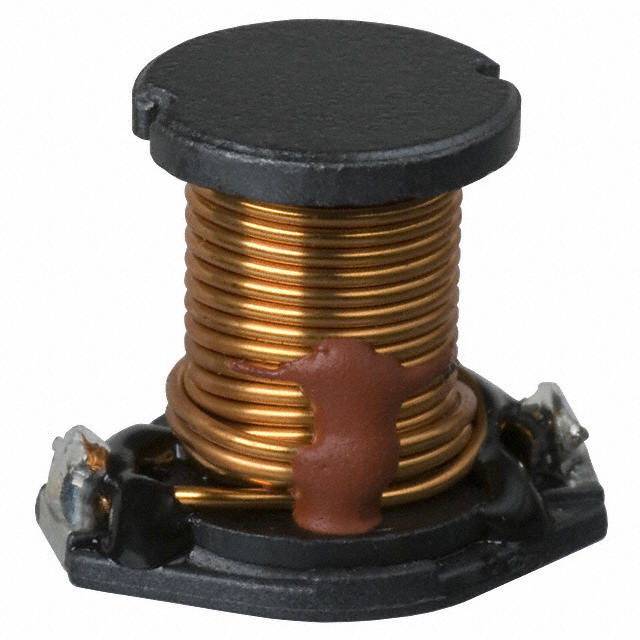

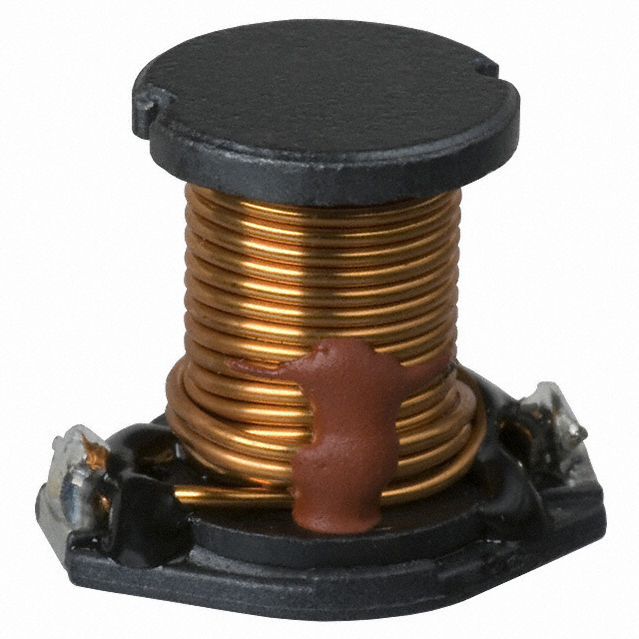

BOURNS  PM3340-101M-RC  表面贴装功率电感器, PM3340系列, 100 µH, ± 20%, 非屏蔽, 0.22 ohm, 1.2 A

PM3340 系列线绕扼流圈

最大高度为 11.5 mm

额定电流高达 3.5 A

符合 RoHs

应用于直流/直流转换器的输入/输出，以及工业电子

立创商城:
100uH ±20% 1.2A 220mΩ

得捷:
FIXED IND 100UH 1.2A 220MOHM SMD

欧时:
### PM3340 系列线绕扼流圈最大高度为 11.5 mm 额定电流高达 3.5 A 符合 RoHs 应用于直流/直流转换器的输入/输出，以及工业电子 ### Bourns 非标准表面安装电感器（扼流圈）

e络盟:
功率电感SMD, 100 µH, 1.2 A, 非屏蔽, 2.5 A, PM3308系列, 13mm x 10.2mm x 11.5mm

艾睿:
This power PM3340-101M-RC surface mount inductor from Bourns is ideal for saving valuable space on a PCB. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has a tolerance of 20%. It has an inductance of 100u H. This SMD inductor has a maximum DC current of 1.2 A with a maximum resistance of 220m Ohm. This device is made with bobbin core technology. Its test frequency is 100K Hz. This product is 13 mm long, 11.5 mm tall and 10.2 mm deep.

Allied Electronics:
Inductor; SMT Pwr, Shielded; 100uH; 20%; 0.22 Ohm DCR Max

Chip1Stop:
Inductor Power Bobbin Core 100uH 20% 100KHz Ferrite 1.2A 220mOhm DCR T/R

Verical:
Inductor Power Bobbin Core 100uH 20% 100KHz Ferrite 1.2A 0.22Ohm DCR T/R

Newark:
# BOURNS JW MILLER  PM3340-101M-RC  Surface Mount Power Inductor, PM3340 Series, 100 µH, 1.2 A, 2.5 A, Unshielded, 0.22 ohm

MASTER:
Inductor Power Bobbin Core 100uH 20% 100KHz Ferrite 1.2A 220mOhm DCR T/R

Electro Sonic:
Inductor Power Bobbin Core 100uH 20% 100KHz Ferrite 1.2A 220mOhm DCR T/R
