PM5022-471M-RC

BOURNS JW MILLER  PM5022-471M-RC  功率电感, 470uH, 20%容差, SMD

无屏蔽 绕线 器 820 毫欧 非标准

得捷:
FIXED IND 470UH 800MA 820MOHM SM

立创商城:
470uH ±20% 800mA 820mΩ

贸泽:
Fixed Inductors 470uH 20%

e络盟:
功率电感, 470uH, 20%容差, SMD

艾睿:

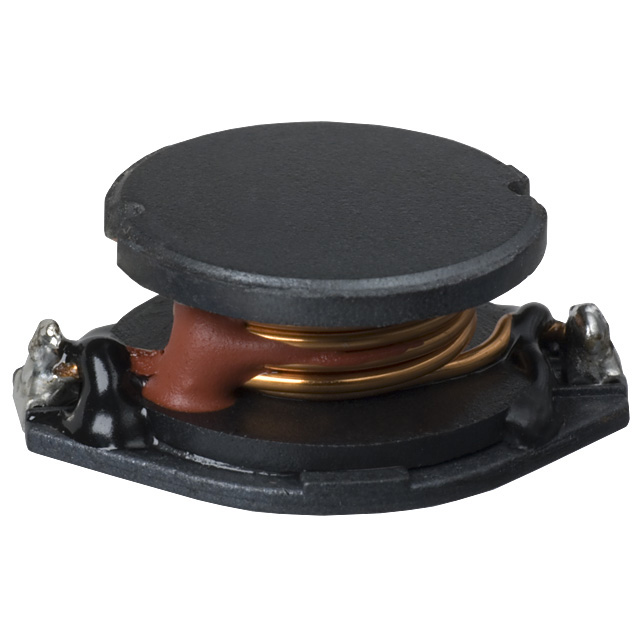

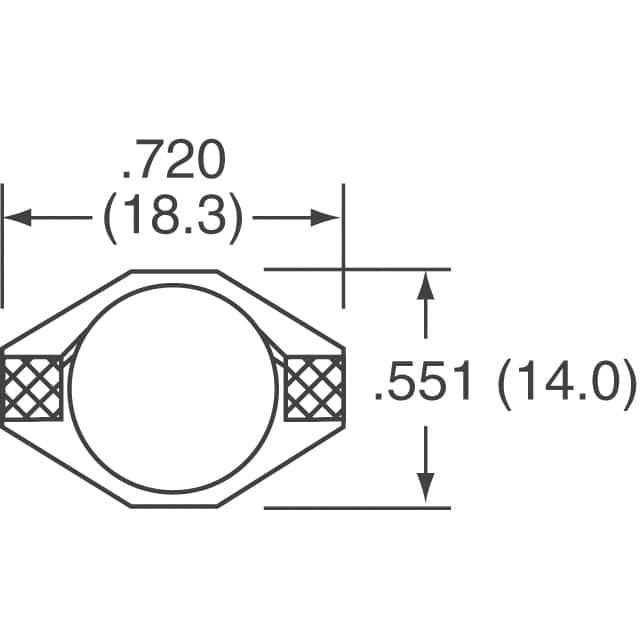

Is space on a PCB a limiting factor for your electronic circuit design? Then use this power PM5022-471M-RC surface mount inductor from Bourns to save valuable space. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This SMD inductor has a maximum DC current of 800m A with a maximum resistance of 820m Ohm. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 3MTyp Hz. This device is made with bobbin core technology. It has a tolerance of 20%. It has an inductance of 470u H. This product is 18.6 mm long, 6.9 mm tall and 14.3 mm deep.

Allied Electronics:
Inductor; SMT Pwr; Non-Shielded; 470uH; 20%

安富利:
Ind Power Bobbin Core 470uH 20% 100KHz 15Q-Factor Ferrite 800mA T/R

Chip1Stop:
Ind Power Bobbin Core 470uH 20% 100KHz 15Q-Factor Ferrite 800mA T/R

Verical:
Inductor Power Bobbin Core 470uH 20% 100KHz 15Q-Factor Ferrite 800mA 820mOhm DCR T/R

Newark:
# BOURNS JW MILLER  PM5022-471M-RC  Surface Mount Power Inductor, PM5022 Series, 470 µH, 800 mA, 1.5 A, Unshielded, 0.82 ohm

MASTER:
Inductor Power Bobbin Core 470uH 20% 100KHz 15Q-Factor Ferrite 800mA 820mOhm DCR T/R

Electro Sonic:
Inductor Power Bobbin Core 470uH 20% 100KHz 15Q-Factor Ferrite 800mA 820mOhm DCR T/R
