PM54-221K-RC

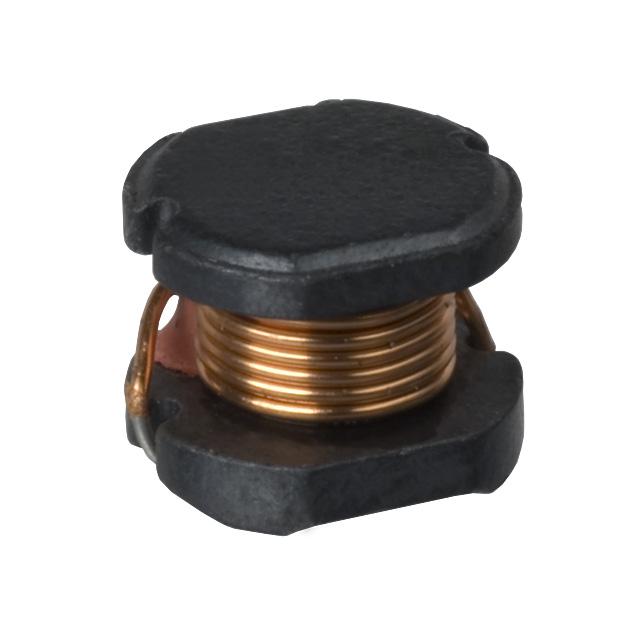

BOURNS JW MILLER  PM54-221K-RC  功率电感, 220uH, 10%容差, SMD

220 µH 无屏蔽 器 350 mA 1.57 欧姆 非标准

立创商城:
220uH ±10% 350mA 1.57Ω

得捷:
FIXED IND 220UH 350MA 1.57OHM SM

e络盟:
功率电感, 220uH, 10%容差, SMD

艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power PM54-221K-RC surface mount inductor from Bourns to save valuable space. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This product is 4.8 mm tall with a diameter of 5.8 mm. It has a tolerance of 10%. This SMD inductor has a maximum DC current of 350m A with a maximum resistance of 1.57 Ohm. It has an inductance of 220u H. This device is made with bobbin core technology. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 6M Hz.

Allied Electronics:
Pwr Inductor; Non-Shielded; 220 uH; 10%; 1.57 Ohm DCR

安富利:
Ind Power Unshielded Wirewound 220uH 10% 0.796MHz 20Q-Factor Ferrite 0.35A T/R

Chip1Stop:
Inductor Power Bobbin Core 220uH 10% 1KHz 20Q-Factor Ferrite 350mA 1.57Ohm DCR T/R

Verical:
Inductor Power Wirewound 220uH 10% 1KHz 20Q-Factor Ferrite 0.35A 1.57Ohm DCR T/R

Newark:
# BOURNS JW MILLER  PM54-221K-RC  Surface Mount Power Inductor, PM54 Series, 220 µH, 350 mA, 440 mA, Unshielded, 1.57 ohm

MASTER:
Inductor Power Bobbin Core 220uH 10% 1KHz 20Q-Factor Ferrite 350mA 1.57Ohm DCR T/R

Electro Sonic:
Inductor Power Bobbin Core 220uH 10% 1KHz 20Q-Factor Ferrite 350mA 1.57Ohm DCR T/R
