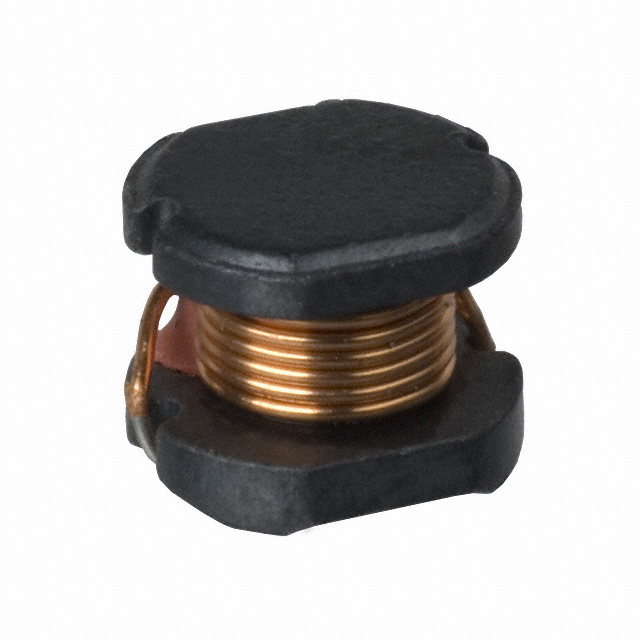

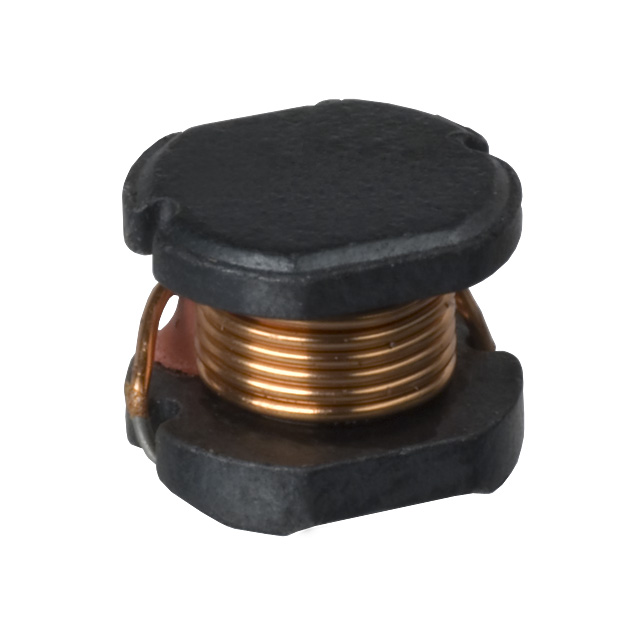

PM54-100M-RC

BOURNS JW MILLER  PM54-100M-RC  功率电感, 10uH 1.44A 20% 30MHz

**Features:

**

* Formerly J.W. Miller Model

* Small Diameter of Only 5.8 mm Maximum

* Profile of 4.8 mm**

Applications:

**

* Input/Output of DC/DC Converters

* Power Supplies for: Portable Communication Equipment, Camcorders, LCD TVs and Car Radios

得捷:
FIXED IND 10UH 1.45A 100MOHM SMD

立创商城:
10uH ±20% 1.45A 100mΩ

e络盟:
功率电感, 10uH 1.44A 20% 30MHz

艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power PM54-100M-RC surface mount inductor from Bourns to save valuable space. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This device is made with bobbin core technology. It has a tolerance of 20%. This SMD inductor has a maximum DC current of 1.45 A with a maximum resistance of 100m Ohm. This product is 4.8 mm tall with a diameter of 5.8 mm. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 23M Hz. It has an inductance of 10u H.

Allied Electronics:
Inductor, Pwr, SMT; 10uH; 20%; 1.44Adc; 2.52MHzTest; 30MHzSRF; 0.10 Ohm DCR

安富利:
Ind Power Bobbin Core 10uH 20% 1KHz Ferrite 1.45A T/R

Chip1Stop:
Inductor Power Bobbin Core 10uH 20% 1KHz 30Q-Factor Ferrite 1.45A 100mOhm DCR T/R

Verical:
Inductor Power Bobbin Core 10uH 20% 1KHz 30Q-Factor Ferrite 1.45A 100mOhm DCR T/R

Newark:
# BOURNS JW MILLER  PM54-100M-RC  Surface Mount Power Inductor, PM54 Series, 10 µH, 1.45 A, 2 A, Unshielded, 0.1 ohm

MASTER:
Inductor Power Wirewound 10uH 20% 1KHz 30Q-Factor Ferrite 1.45A 0.1Ohm DCR T/R

Online Components:
Inductor Power Bobbin Core 10uH 20% 1KHz 30Q-Factor Ferrite 1.45A 100mOhm DCR T/R

Electro Sonic:
Inductor Power Wirewound 10uH 20% 1KHz 30Q-Factor Ferrite 1.45A 0.1Ohm DCR T/R

Win Source:
10μH Unshielded Wirewound Inductor 1.45A 100 mOhm Nonstandard
