PM54-680K-RC

68uH ±10% 620mA

**Features:

**

* Formerly J.W. Miller Model

* Small Diameter of Only 5.8 mm Maximum

* Profile of 4.8 mm**

Applications:

**

* Input/Output of DC/DC Converters

* Power Supplies for: Portable Communication Equipment, Camcorders, LCD TVs and Car Radios

得捷:
FIXED IND 68UH 620MA 520MOHM SMD

艾睿:

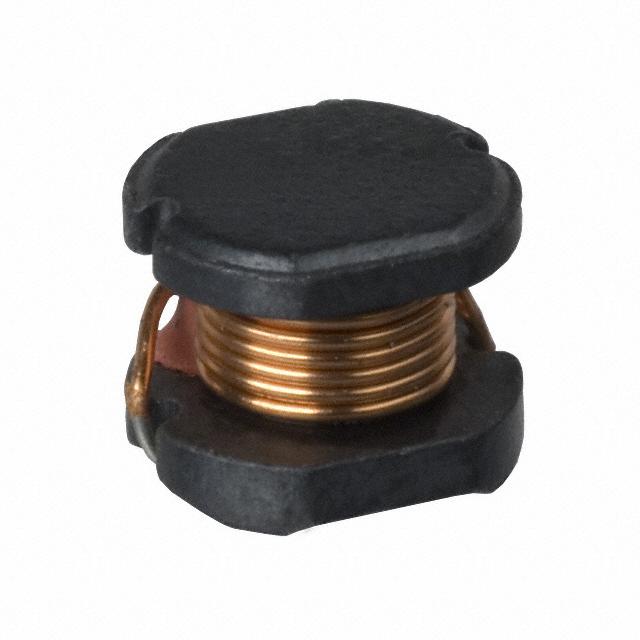

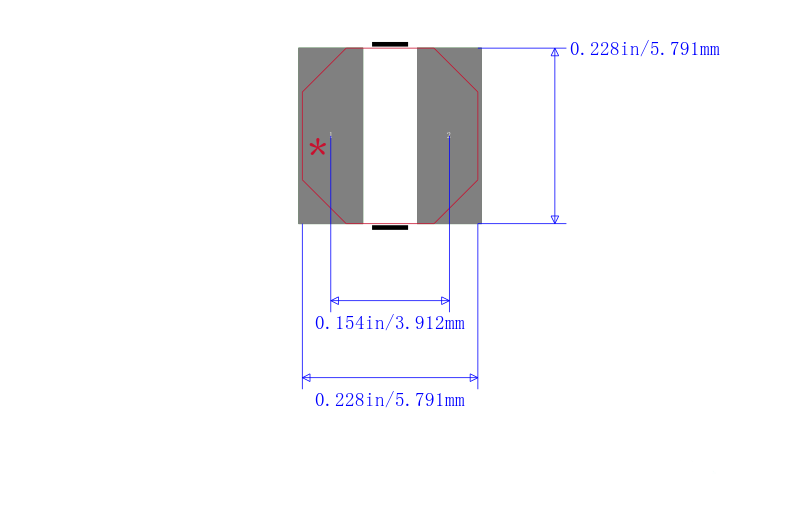

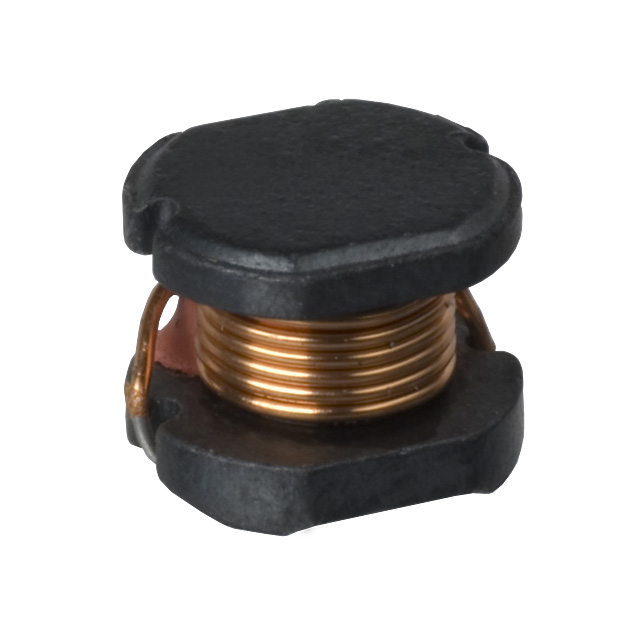

Save valuable space on a PCB with this power PM54-680K-RC surface mount inductor from Bourns. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 10M Hz. This device is made with bobbin core technology. It has a tolerance of 10%. It has an inductance of 68u H. This product is 4.8 mm tall with a diameter of 5.8 mm. This SMD inductor has a maximum DC current of 620m A with a maximum resistance of 520m Ohm.

Allied Electronics:
Inductor, SMT Pwr; Non-Shielded; 68uH; 10%; 0.52 Ohm DCR

Chip1Stop:
Ind Power Bobbin Core 68uH 10% 1KHz 22Q-Factor Ferrite 620mA T/R

Verical:
Inductor Power Wirewound 68uH 10% 1KHz 22Q-Factor Ferrite 0.62A 0.52Ohm DCR T/R

Newark:
# BOURNS JW MILLER  PM54-680K-RC  Surface Mount Power Inductor, PM54 Series, 68 µH, 620 mA, 840 mA, Unshielded, 0.52 ohm

MASTER:
Inductor Power Wirewound 68uH 10% 1KHz 22Q-Factor Ferrite 0.62A 0.52Ohm DCR T/R

Electro Sonic:
Inductor Power Wirewound 68uH 10% 1KHz 22Q-Factor Ferrite 0.62A 0.52Ohm DCR T/R
