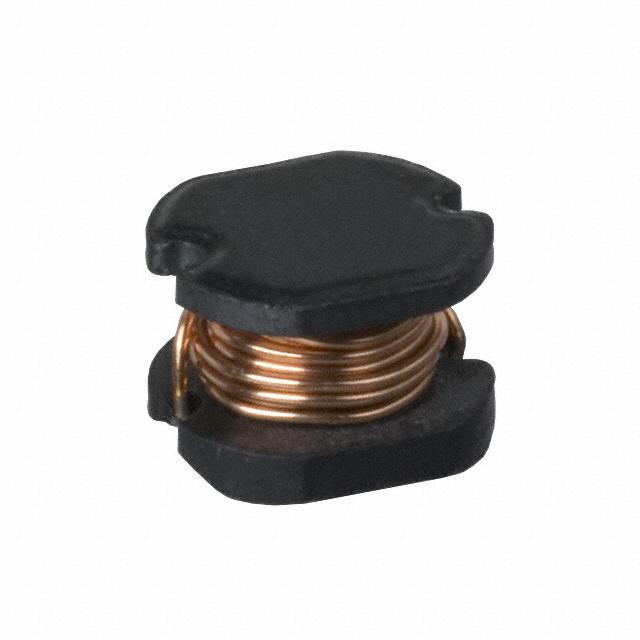

PM43-150M-RC

BOURNS JW MILLER  PM43-150M-RC  表面贴装功率电感器, PM43系列, 15 µH, ± 20%, 非屏蔽, 0.24 ohm, 920 mA

15µH Unshielded Wirewound Inductor 920mA 240mOhm Max Nonstandard

得捷:
FIXED IND 15UH 920MA 240MOHM SMD

立创商城:
15uH ±20% 920mA 240mΩ

e络盟:
功率电感SMD, 15 µH, 920 mA, 非屏蔽, 1.4 A, PM43系列, 4.5mm x 4mm x 3.2mm

艾睿:
This power PM43-150M-RC surface mount inductor from Bourns is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This SMD inductor has a maximum DC current of 920m A with a maximum resistance of 240m Ohm. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 28M Hz. It has a tolerance of 20%. It has an inductance of 15u H. This device utilizes bobbin core technology. This product is 4.8 mm long, 3.5 mm tall and 4.3 mm deep.

Verical:
Inductor Power Bobbin Core 15uH 20% 1KHz 28Q-Factor Ferrite 0.92A 0.24Ohm DCR T/R

Newark:
# BOURNS JW MILLER  PM43-150M-RC  Surface Mount Power Inductor, PM43 Series, 15 µH, 920 mA, 1.4 A, Unshielded, 0.24 ohm

Electro Sonic:
Inductor Power Bobbin Core 15uH 20% 1KHz 28Q-Factor Ferrite 920mA 240mOhm DCR T/R
