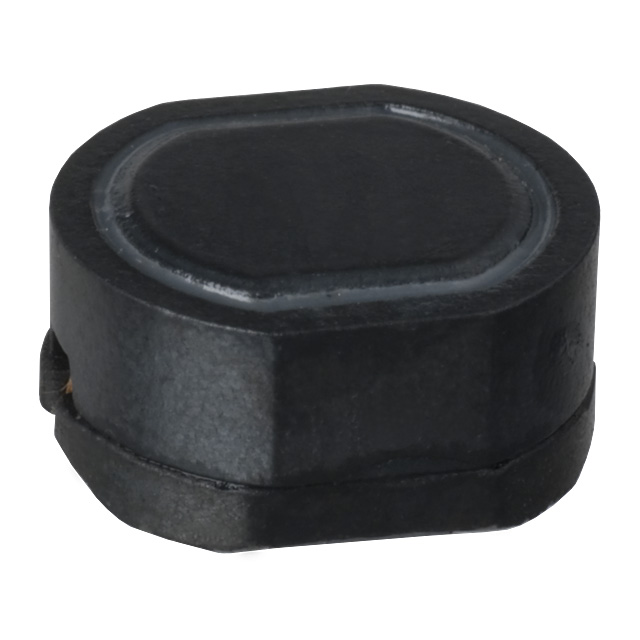

BOURNS JW MILLER PM105SB-470L-RC 功率电感, 47uH, 15%容差
屏蔽 绕线 器 140 毫欧最大 非标准
得捷:
FIXED IND 47UH 1A 140 MOHM SMD
立创商城:
47uH ±15% 1A 140mΩ
e络盟:
BOURNS JW MILLER PM105SB-470L-RC 功率电感, 47uH, 15%容差
艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power PM105SB-470L-RC surface mount inductor from Bourns to save valuable space. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This device utilizes bobbin core technology. It has a tolerance of 15%. This product is 4.8 mm tall with a diameter of 10.2 mm. It has an inductance of 47u H. This SMD inductor has a maximum DC current of 1 A with a maximum resistance of 140m Ohm. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 11MTyp Hz.
Allied Electronics:
Inductor, Shielded; SMT Pwr; 47uH; 15%; 0.14Ohm DCR Max
安富利:
Ind Power Shielded Bobbin Core 47uH 15% 100KHz 27Q-Factor Ferrite 1A T/R
Chip1Stop:
Inductor Power Shielded Bobbin Core 47uH 15% 100KHz 27Q-Factor Ferrite 1A 140mOhm DCR T/R
Verical:
Inductor Power Shielded Bobbin Core 47uH 15% 100KHz 27Q-Factor Ferrite 1A 0.14Ohm DCR T/R
Newark:
# BOURNS JW MILLER PM105SB-470L-RC Surface Mount Power Inductor, PM105SB Series, 47 µH, 1 A, Shielded, 0.14 ohm
MASTER:
Inductor Power Shielded Bobbin Core 47uH 15% 100KHz 27Q-Factor Ferrite 1A 140mOhm DCR T/R
Electro Sonic:
Inductor Power Shielded Bobbin Core 47uH 15% 100KHz 27Q-Factor Ferrite 1A 140mOhm DCR T/R
额定电流 1 A
容差 ±15 %
电感 47 µH
自谐频率 11 MHz
Q值 27
屏蔽 Yes
电感公差 ±15 %
测试频率 100 kHz
电阻DC) ≤140 mΩ
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.14 Ω
安装方式 Surface Mount
引脚数 2
封装 9.9mm x 9.9mm x 4.5mm
宽度 9.00 mm
高度 4.8 mm
直径 10.0 mm
封装 9.9mm x 9.9mm x 4.5mm
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8504508000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PM105SB-470L-RC Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
MCSDC0604-470KU Multicomp | 功能相似 | PM105SB-470L-RC和MCSDC0604-470KU的区别 |
MCSDC0805-470KU Multicomp | 功能相似 | PM105SB-470L-RC和MCSDC0805-470KU的区别 |
MCSDC1006-470KU Multicomp | 功能相似 | PM105SB-470L-RC和MCSDC1006-470KU的区别 |
