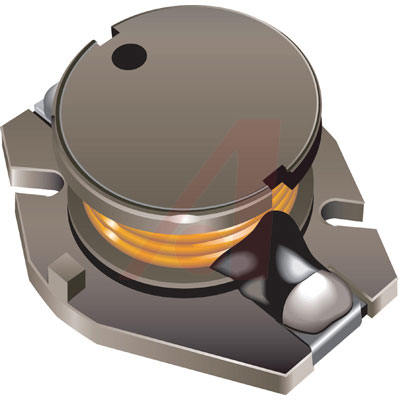

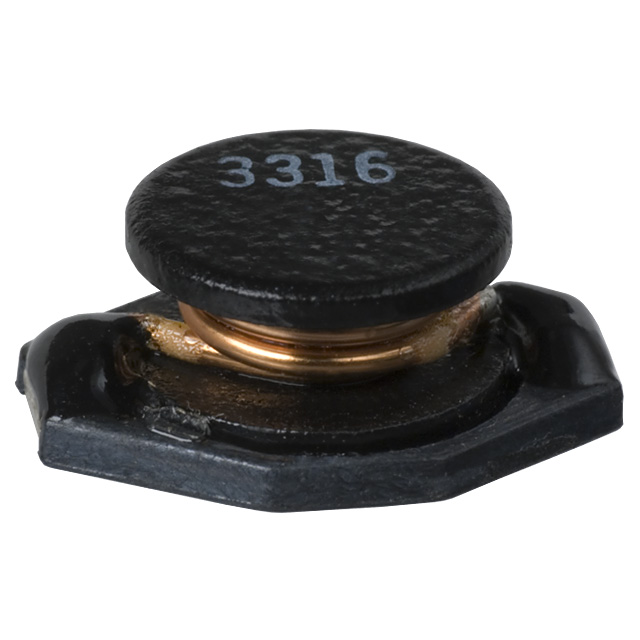

BOURNS JW MILLER PM3316-471M-RC 功率电感, 470uH, 20%容差, SMD
**Features:
**
* Formerly J.W. Miller Model
* Low Profile of Only 5.0 mm
* Inductance as Low as 1.0 μH**
Applications:
**
* Input/Output of DC/DC Converters
* Power Supplies for: Portable Communication Equipment, Camcorders, LCD TVs and Car Radios
立创商城:
470uH ±20% 450mA 1.7Ω
得捷:
FIXED IND 470UH 450MA 1.7OHM SMD
贸泽:
Fixed Inductors 470uH 20%
e络盟:
功率电感, 470uH, 20%容差, SMD
艾睿:
This power PM3316-471M-RC surface mount inductor from Bourns is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device is made with wirewound technology. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 4M Hz. It has a tolerance of 20%. This SMD inductor has a maximum DC current of 450m A with a maximum resistance of 1.7 Ohm. This product is 12.9 mm long, 5.3 mm tall and 10.2 mm deep. It has an inductance of 470u H.
Allied Electronics:
Inductor; SMT Pwr; 470uH; 20%; 1.70 DCR
安富利:
Ind Power Wirewound 470uH 20% 1KHz 57Q-Factor Ferrite 450mA T/R
Chip1Stop:
Ind Power Wirewound 470uH 20% 1KHz 57Q-Factor Ferrite 450mA T/R
Verical:
Inductor Power Wirewound 470uH 20% 1KHz 57Q-Factor Ferrite 0.45A 1.7Ohm DCR T/R
Newark:
# BOURNS JW MILLER PM3316-471M-RC Surface Mount Power Inductor, PM3316 Series, 470 µH, 450 mA, 500 mA, Unshielded, 1.7 ohm
MASTER:
Inductor Power Wirewound 470uH 20% 1KHz 57Q-Factor Ferrite 450mA 1.7Ohm DCR T/R
Electro Sonic:
Inductor Power Wirewound 470uH 20% 1KHz 57Q-Factor Ferrite 450mA 1.7Ohm DCR T/R
额定电流 450 mA
容差 ±20 %
电感 470 µH
自谐频率 4 MHz
Q值 57.0
屏蔽 No
电感公差 ±20 %
测试频率 1 kHz
电阻DC) 1.7 Ω
工作温度Max 125 ℃
工作温度Min 55 ℃
电阻DC Max 1.7 Ω
安装方式 Surface Mount
引脚数 2
封装 12.7mm x 10mm x 5mm
长度 12.7 mm
宽度 10 mm
高度 5.3 mm
封装 12.7mm x 10mm x 5mm
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8504508000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PM3316-471M-RC Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
SDR1005-471KL 伯恩斯 | 功能相似 | PM3316-471M-RC和SDR1005-471KL的区别 |
PM3316-471M 伯恩斯 | 功能相似 | PM3316-471M-RC和PM3316-471M的区别 |
