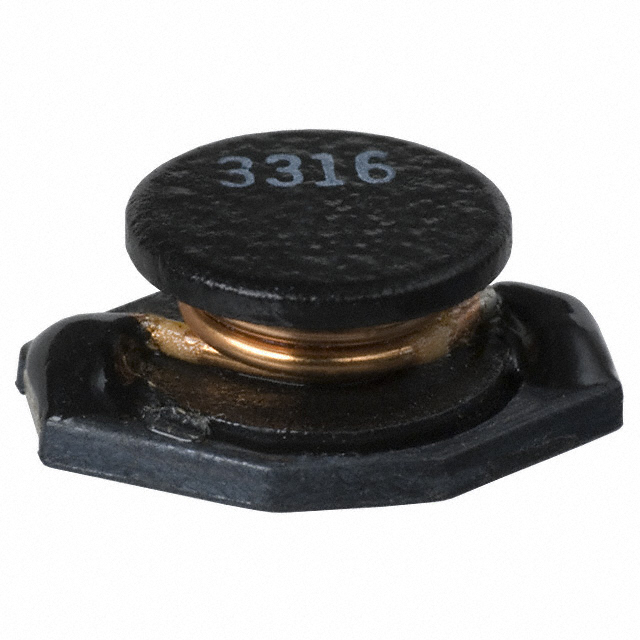

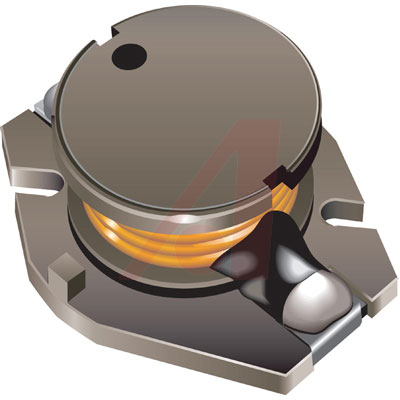

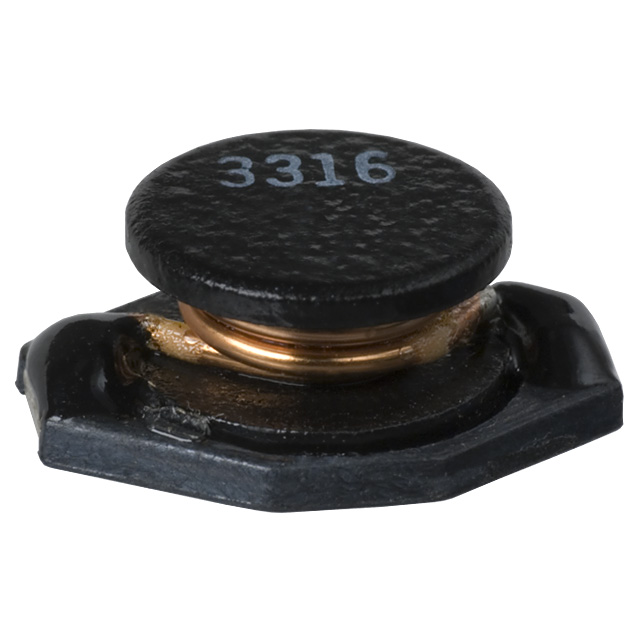

PM3316-330M-RC

BOURNS JW MILLER  PM3316-330M-RC  功率电感, 33uH, 20%容差, SMD

无屏蔽 绕线 器 120 毫欧 非标准

得捷:
FIXED IND 33UH 1.8A 120 MOHM SMD

立创商城:
33uH ±20% 1.8A 120mΩ

贸泽:
Fixed Inductors 33uH 20%

e络盟:
电感, 非屏蔽, 33UH, 2A, SMD

艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power PM3316-330M-RC surface mount inductor from Bourns to save valuable space. This SMD inductor has an operating temperature range of -55 °C to 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 14M Hz. It has a tolerance of 20%. This product is 12.9 mm long, 5.3 mm tall and 10.2 mm deep. It has an inductance of 33u H. This device utilizes wirewound technology. This SMD inductor has a maximum DC current of 1.8 A with a maximum resistance of 120m Ohm.

Allied Electronics:
Inductor; Pwr, SMT, 33uH; 20%; DCR 0.12 Ohm

安富利:
Ind Power Wirewound 33uH 20% 1KHz 25Q-Factor Ferrite 1.8A T/R

Verical:
Inductor Power Wirewound 33uH 20% 1KHz 25Q-Factor Ferrite 1.8A 0.12Ohm DCR T/R

Newark:
# BOURNS JW MILLER  PM3316-330M-RC  Surface Mount Power Inductor, PM3316 Series, 33 µH, 1.8 A, 2 A, Unshielded, 0.12 ohm

MASTER:
Inductor Power Wirewound 33uH 20% 1KHz 25Q-Factor Ferrite 1.8A 120mOhm DCR T/R

Electro Sonic:
Inductor Power Wirewound 33uH 20% 1KHz 25Q-Factor Ferrite 1.8A 120mOhm DCR T/R
