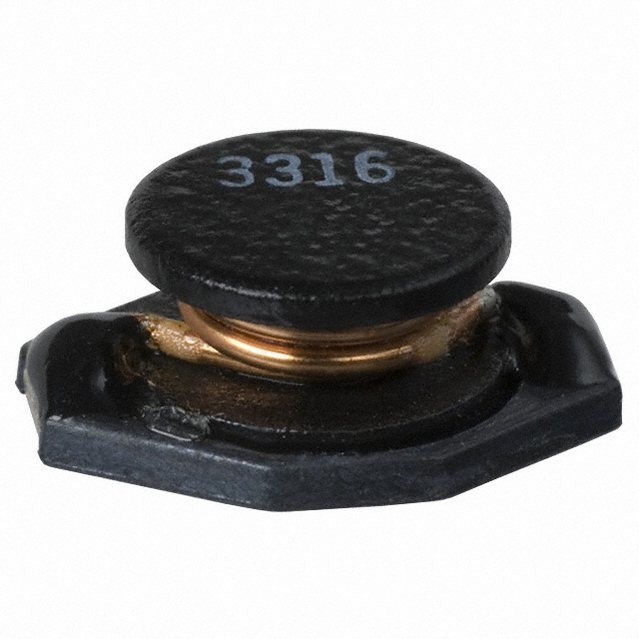

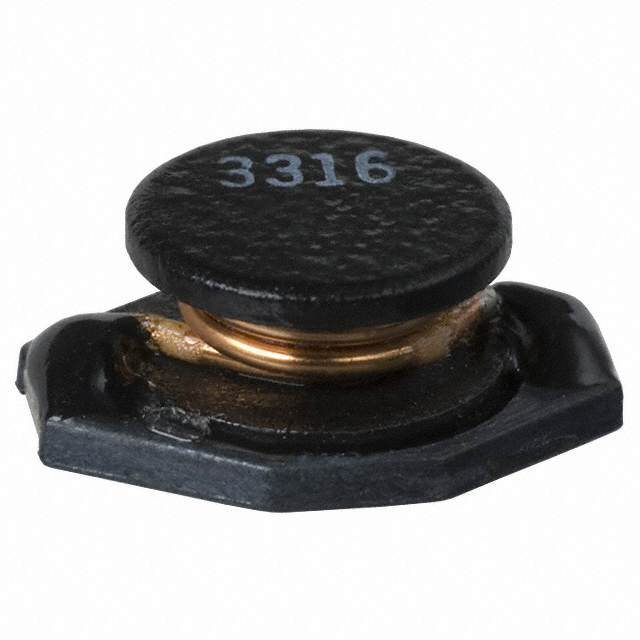

PM3316-3R3M-RC

SMD功率电感 SMD Power Inductors

无屏蔽 绕线 器 15 毫欧 非标准

立创商城:
3.3uH ±20% 5A 15mΩ

得捷:
FIXED IND 3.3UH 5A 15 MOHM SMD

贸泽:
Fixed Inductors 3.3uH 20%

艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power PM3316-3R3M-RC surface mount inductor from Bourns to save valuable space. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has an inductance of 3.3u H. This SMD inductor has a maximum DC current of 5 A with a maximum resistance of 15m Ohm. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 54M Hz. This device is made with wirewound technology. This product is 12.9 mm long, 5.3 mm tall and 10.2 mm deep. It has a tolerance of 20%.

Chip1Stop:
Inductor Power Wirewound 3.3uH 20% 1KHz 50Q-Factor Ferrite 5A 15mOhm DCR T/R

Verical:
Inductor Power Wirewound 3.3uH 20% 1KHz 50Q-Factor Ferrite 5A 0.015Ohm DCR T/R

Newark:
# BOURNS JW MILLER  PM3316-3R3M-RC  Surface Mount Power Inductor, PM3316 Series, 3.3 µH, 5 A, 6.4 A, Unshielded, 0.015 ohm

MASTER:
Inductor Power Wirewound 3.3uH 20% 1KHz 50Q-Factor Ferrite 5A 15mOhm DCR T/R

Electro Sonic:
Inductor Power Wirewound 3.3uH 20% 1KHz 50Q-Factor Ferrite 5A 0.015Ohm DCR T/R

Win Source:
FIXED IND 3.3UH 5A 15 MOHM SMD / 3.3 µH Unshielded Drum Core, Wirewound Inductor 5 A 15mOhm Nonstandard
