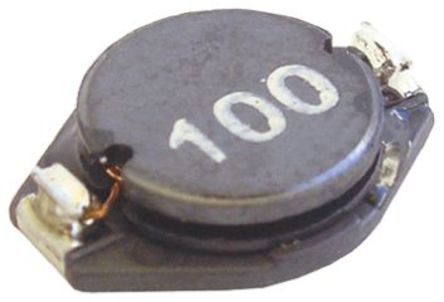

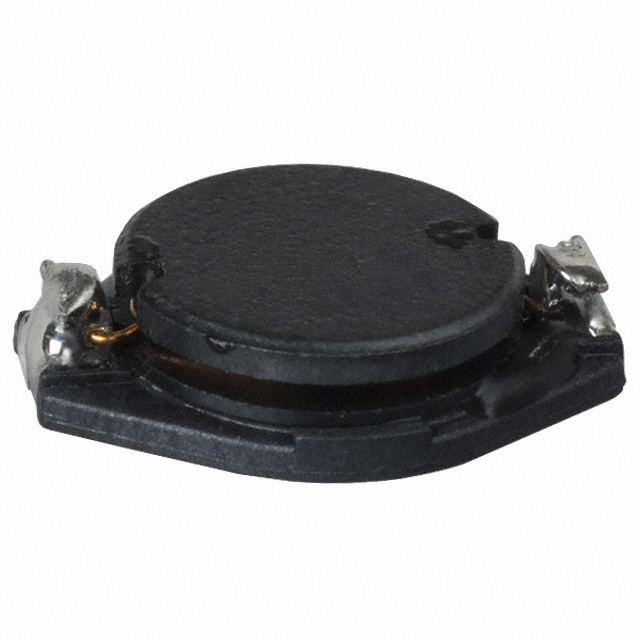

PM3308-101M-RC

PM3308 系列线绕扼流圈最高高度为 3.0mm 额定电流高达 2 A 符合 RoHs 应用于直流/直流转换器的输入/输出，以及工业电子 ### Bourns 非标准表面安装电感器（扼流圈）

PM3308 系列线绕扼流圈

最高高度为 3.0mm

额定电流高达 2 A

符合 RoHs

应用于直流/直流转换器的输入/输出，以及工业电子

得捷:
FIXED IND 100UH 600MA 800MOHM SM

欧时:
### PM3308 系列线绕扼流圈最高高度为 3.0mm 额定电流高达 2 A 符合 RoHs 应用于直流/直流转换器的输入/输出，以及工业电子 ### Bourns 非标准表面安装电感器（扼流圈）

艾睿:
Make any circuit look clean and compact using this power PM3308-101M-RC surface mount inductor from Bourns. This SMD inductor has an operating temperature range of -55 °C to 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It has a tolerance of 20%. This product is 13 mm long, 3 mm tall and 9.5 mm deep. It has an inductance of 100u H. This SMD inductor has a maximum DC current of 600mA typ with a maximum resistance of 800m Ohm. Its test frequency is 100K Hz. This device utilizes bobbin core technology.

Allied Electronics:
WireWound SMD Inductor w/ FerriteCore, 100 uH +/-20%WireWound 700mA Idc

安富利:
Ind Power Bobbin Core 100uH 20% 100KHz Ferrite 600mA T/R

Chip1Stop:
Inductor Power Bobbin Core 100uH 20% 100KHz Ferrite 600mA 800mOhm DCR T/R

Verical:
Inductor Power Bobbin Core 100uH 20% 100KHz Ferrite 0.6A 0.8Ohm DCR T/R

Newark:
# BOURNS JW MILLER  PM3308-101M-RC  Surface Mount Power Inductor, PM3308 Series, 100 µH, 600 mA, 700 mA, Unshielded, 800 µohm

MASTER:
Inductor Power Bobbin Core 100uH 20% 100KHz Ferrite 600mA 800mOhm DCR T/R

Electro Sonic:
Inductor Power Bobbin Core 100uH 20% 100KHz Ferrite 600mA 800mOhm DCR T/R
