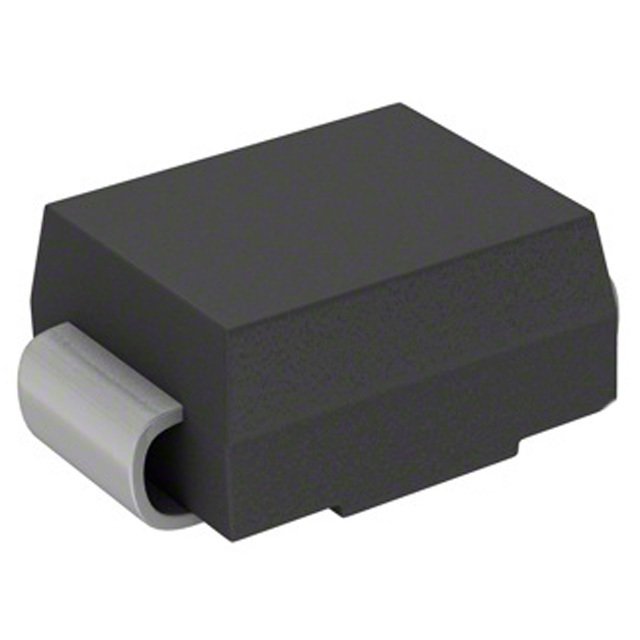

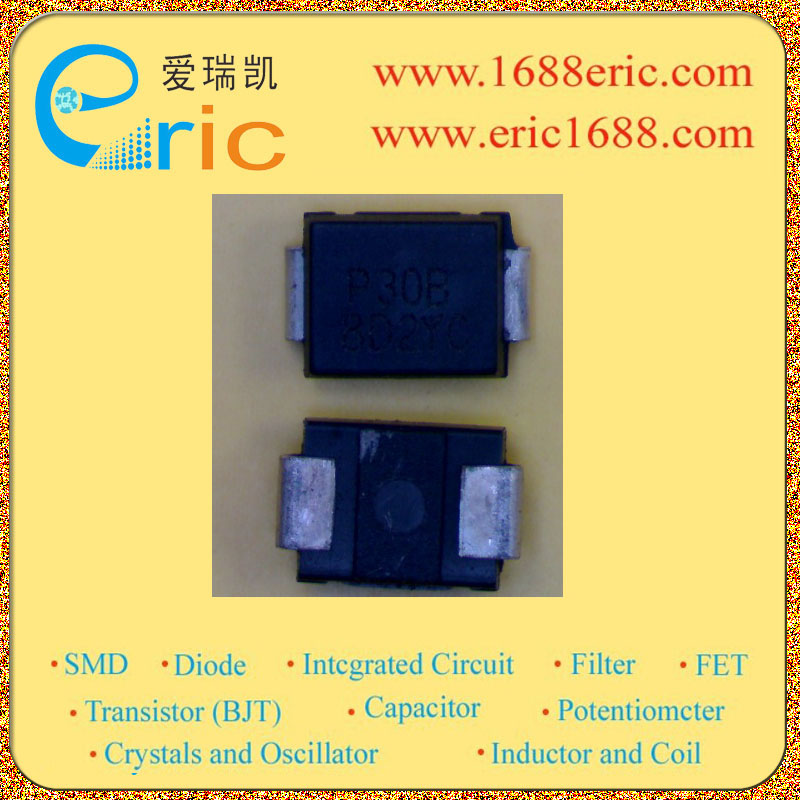

P3002SBLRP SMB/DO-214AA marking/标记 P30B
击穿电压VBOBreakover voltage| \---|--- 断态重复峰值电压VDRMRepetitive peak off-state voltage| 峰值通态电压VTMOn-state voltage| 4V 峰值脉冲电流8 x 20usCurrent - Peak Pulse 8 x 20µs| 150A 峰值脉冲电流10 x 1000usCurrent - Peak Pulse 10 x 1000µs| 45A 保持电流IHHolding current | 150mA Description & Applications| DO-214AA SIDACtor solid state protection devices protect telecommunications equipment such as modems, line cards, fax machines, and other CPE. SIDACtor devices are used to enable equipment to meet various regulatory requirements including GR 1089, ITU K.20, K.21 and K.45, IEC 60950, UL 60950, and TIA/EIA-IS-968 描述与应用| 固态保护设备可以保护电信设备 如调制解调器，线卡，传真机，以及其他CPE。 SIDACtor装置用于使能设备，以满足不同的监管要求 包括GR 1089 ITU K.20，K.21和K.45，IEC60950，UL60950，TIA/EIA-IS-968的
