Other Line Drivers, ON Semiconductor### 其他线路驱动器
电压电平 转换器 双向 电路 2 通道 - 8-UQFN(1.6x1.6)
得捷:
IC TRNSLTR BIDIRECTIONAL 8UQFN
立创商城:
双双向 I2C 总线和 SMBus 电压级转换器
欧时:

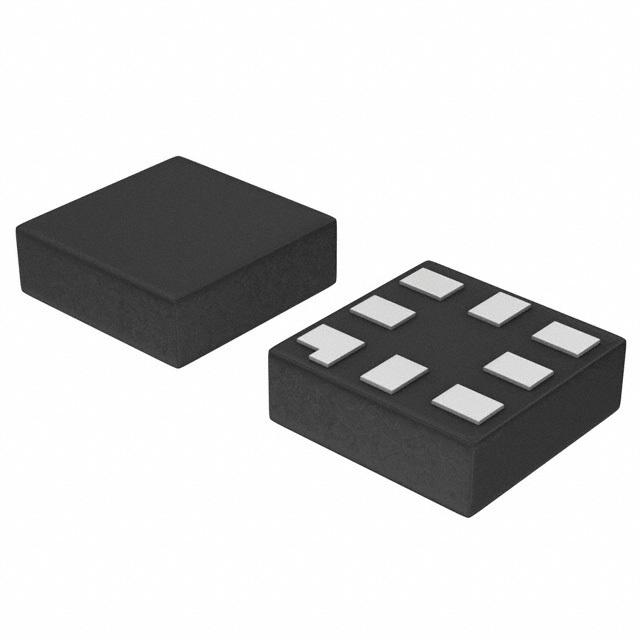

ON Semiconductor PCA9306AMUTCG, 双 电压电平移位器, -0.5 → 7 V电源, 8引脚 UQFN封装
e络盟:
电平转换器, 双向, 1输入, 0 V至5.5 V电源, 1.5 ns延迟, UQFN-8
艾睿:
Are you looking for a device that can regulate the input voltage into your circuit? ON Semiconductor&s;s PCA9306AMUTCG level translator is the perfect solution for you. This level shifter has an operating temperature range of -55 °C to 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device has a typical operating supply voltage of 1.8|2.5|3.3|5 V. Its minimum operating supply voltage of 0 V, while its maximum is 5.5 V.
Allied Electronics:
PCA9306AMUTCG; Dual; Voltage Level Translator; -0.5 - 7 V; 8-Pin UQFN
安富利:
Voltage Level Translator 8-Pin UDFN T/R
Chip1Stop:
Voltage Level Translator 8-Pin UDFN T/R
Verical:
Voltage Level Translator 2-CH Bidirectional 8-Pin UDFN T/R
Win Source:
IC VOLT LEVEL TRANSLATOR 8UQFN
无卤素状态 Halogen Free
电路数 1
通道数 2
针脚数 8
输入数 1
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 1V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 0 V
安装方式 Surface Mount
引脚数 8
封装 UQFN-8
长度 1.6 mm
宽度 1.6 mm
高度 0.55 mm
封装 UQFN-8
工作温度 -55℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Tablet, Handset, etc
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
