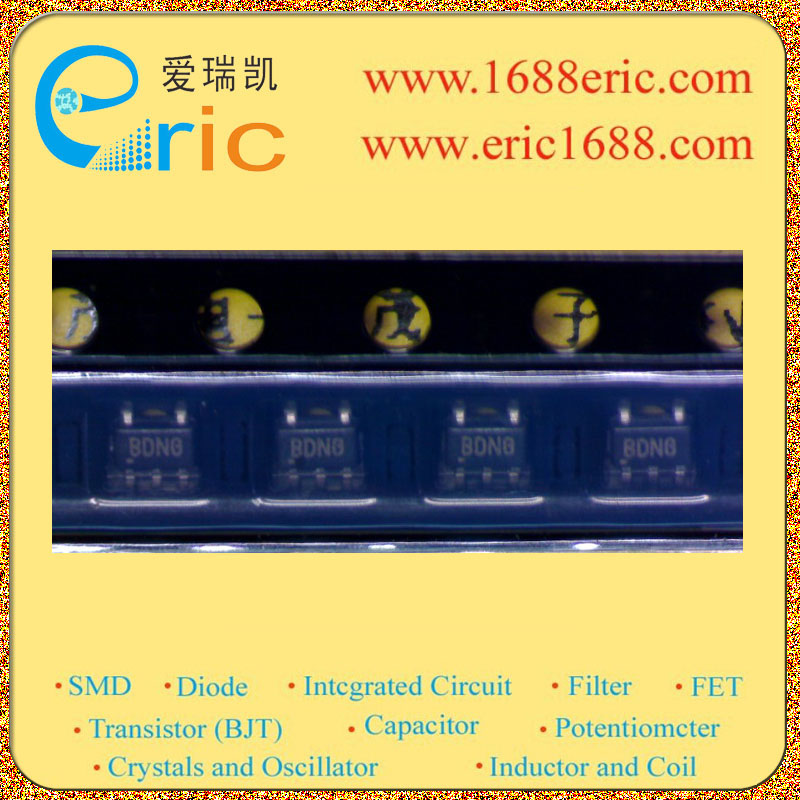

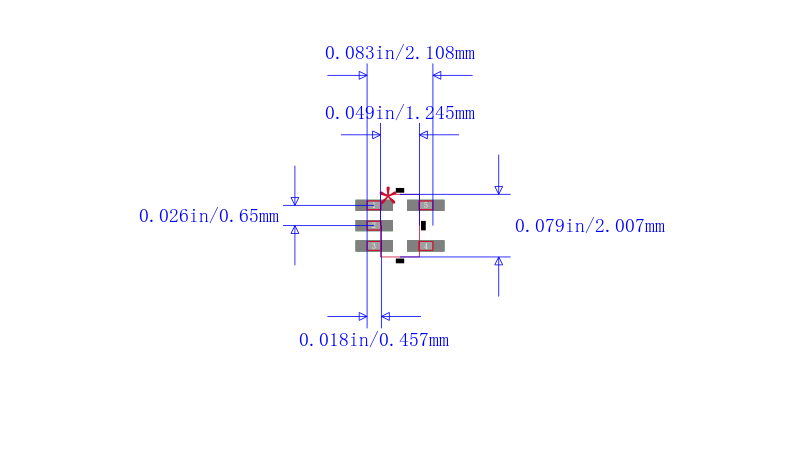

IC 或门 PI74STX1G32CX SOT-353/SC70-5/SC-88 marking/标记 BDM
逻辑类型Logic Type| 或门 OR Gate \---|--- 电路数Number of Circuits| 1 输入数Number of Inputs| 2 电源电压VccVoltage - Supply| 1.65V~5.5V 静态电流IqCurrent - Quiescent Max| 2uA 输出高，低电平电流Current - Output High, Low| -32mA，32mA 低逻辑电平Logic Level - Low| 0.1V~0.55V 高逻辑电平Logic Level - High| 1.55V~3.8V 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| 2.4ns @ 4.5V~5.5V，50pF Description & Applications| SOTiny Gate STX 2-Input OR；Features High-speed: tPD = 2.5ns typical Broad operating range: VCC = 1.65V-5.5V Power down high-impedance inputs/outputs High output drive: ±24mA at 3V VCC Package: 5-pin space saving SOT23 and SC70 描述与应用| SOTiny门极STX2输入或;特性 高速：TPD=2.5ns（典型值） 广泛的经营范围：VCC= 1.65V-5.5V 掉电高阻抗输入/输出 高输出驱动器的±24mA电流在3V VCC 包装：5针节省空间的SOT23和SC70
