25 转 500mW 密封 10mm PV36X 系列高分辨率 25 转侧面调整螺钉 密封,阻挡灰尘和液体 阻燃 10 mm 塑料外壳 ### 多转 10mm 金属陶瓷

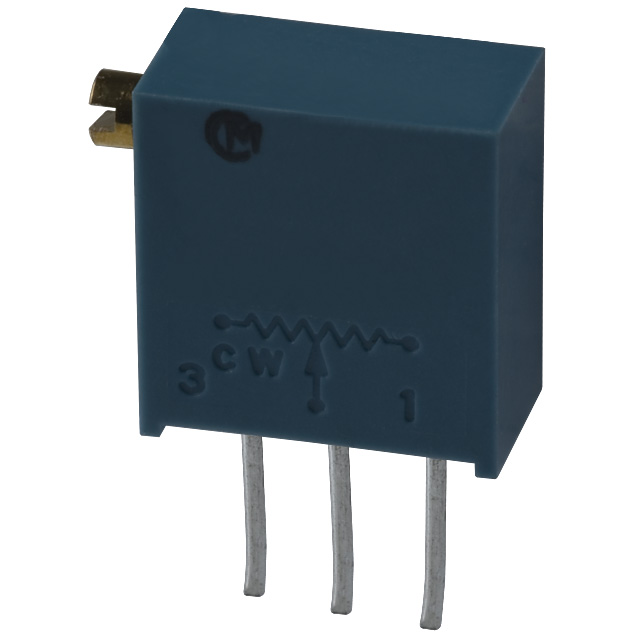

This potentiometer from Murata is designed to optimize functionality and calibrate the resistance in your circuit. This product has a resistance value of 1K Ohm. This dependable part has a power rating of 0.5 1/2 W. Its temperature coefficient is ±100 ppm/°C. This product comes packaged in bulk, so the parts will be stored loosely. This part has an operating temperature of -55 to 125 °C. This device is made with cermet technology. This product is 10.9 mm long, 10 mm tall and 5 mm deep. It has a tolerance of 10%. The PV36X102C01B00 part has a pin termination style.
容差 ±10 %
额定功率 0.5 W
电阻 1 KΩ
阻值偏差 ±10 %
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Through Hole

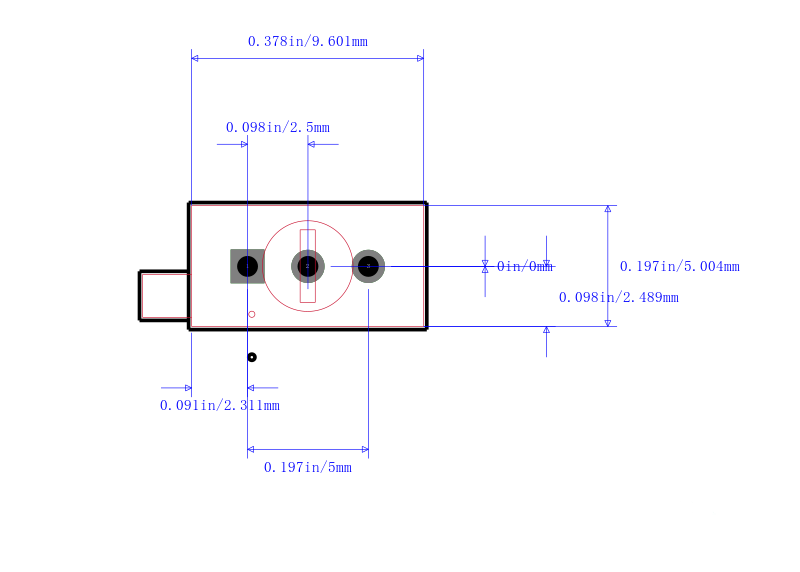

封装 Square - 0.378" L x 0.197" W x 0.394" H 9.60mm x 5.00mm x 10.00mm
长度 10.9 mm
宽度 5 mm
高度 10 mm
封装 Square - 0.378" L x 0.197" W x 0.394" H 9.60mm x 5.00mm x 10.00mm
颜色 Gray, Dark
重量 1.00 g
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Obsolete
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PV36X102C01B00 muRata 村田 | 当前型号 | 当前型号 |
3296X-1-102LF 伯恩斯 | 功能相似 | PV36X102C01B00和3296X-1-102LF的区别 |
3296Z-1-102LF 伯恩斯 | 功能相似 | PV36X102C01B00和3296Z-1-102LF的区别 |
3296X-1-102RLF 伯恩斯 | 功能相似 | PV36X102C01B00和3296X-1-102RLF的区别 |
