PT-120-G-C11-MPB

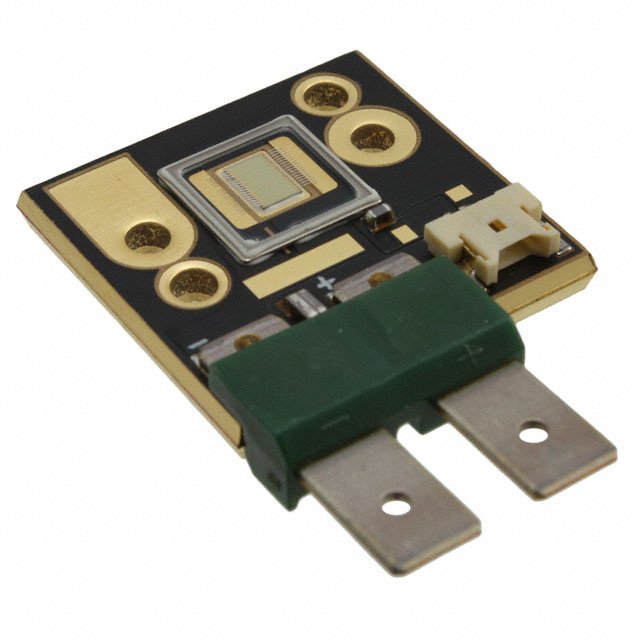

PT-120-G-C11-MPB图片1
PT-120-G-C11-MPB图片2
PT-120-G-C11-MPB图片3

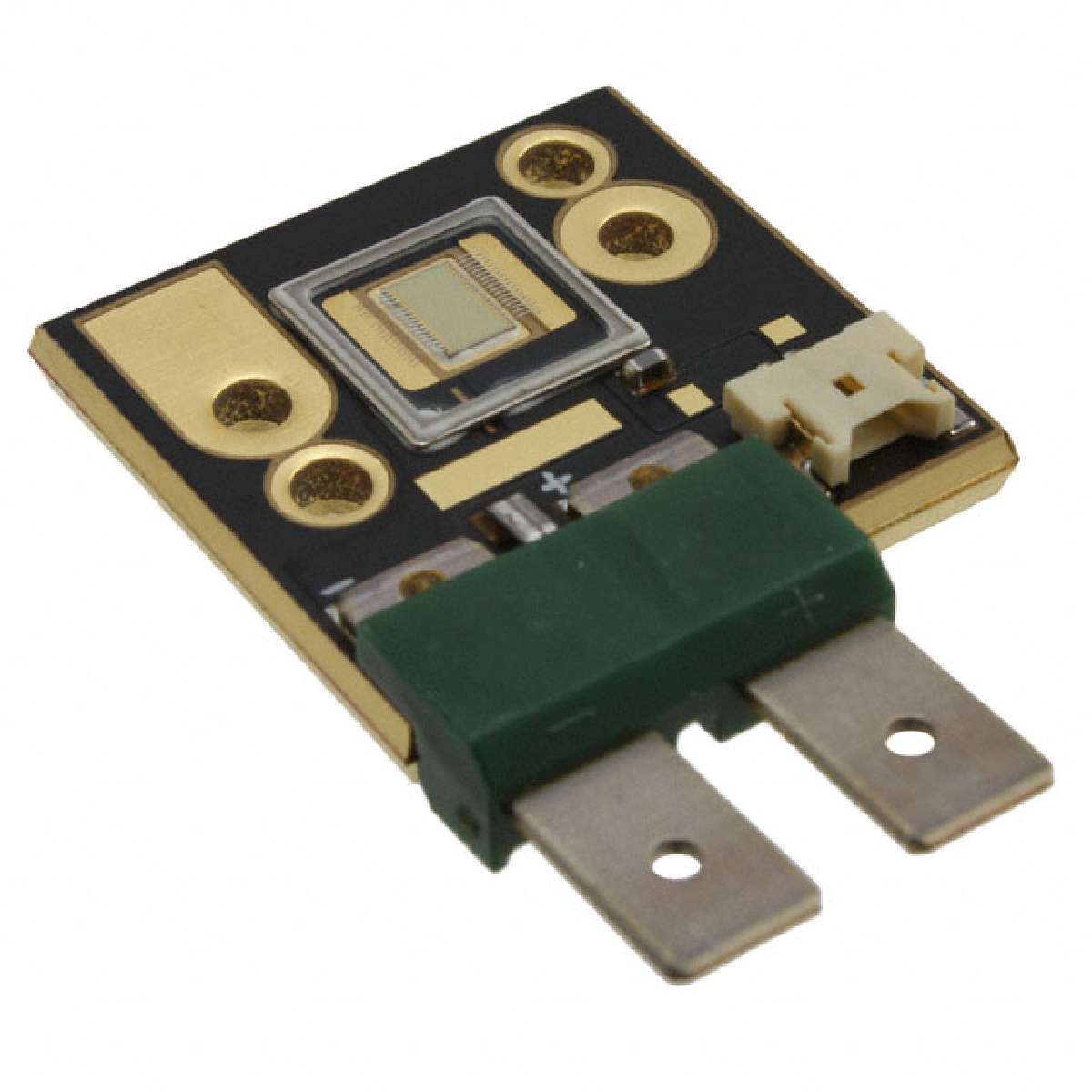

PT-120-G-C11-MPB图片4
PT-120-G-C11-MPB概述

LED照明模块 Green 525nm 3500lm @ 30A

照明 COB、引擎、模块 LED 模块 series 绿色 矩形


得捷:
BIG CHIP LED HB MODULE GREEN


贸泽:
LED照明模块 Green 525nm 3500lm @ 30A


安富利:
Luminus Devices’ Projection Technology PT is an innovative solid-state light source created to replace arc lamps in projection systems, enabling a new category of lamp-free projectors. Enabled by Luminus technology, our chipsets represent a major breakthrough in brightness that delivers all the benefits of solid state light sources in projections applications, including wide color gamut for vivid colors, exceeds NTSC, Environmentally friendly technology Mercury-free, instant start and re-start with no more wait time, high reliability; no more lamp replacement , and electronic control of color points and light intensity on a frame by frame basis. Luminus products benefit from numerous innovations in the domain of packaging, thermal management and optical coupling that allow designers to achieve efficient light engine designs and deliver high screen brightness.


Win Source:
BIG CHIP LED HB MODULE GREEN


PT-120-G-C11-MPB中文资料参数规格
技术参数

正向电压 4.9 V

波长 528 nm

测试电流 18 A

外形尺寸

长度 28 mm

宽度 26.75 mm

高度 5.61 mm

物理参数

颜色 Green

其他

产品生命周期 Obsolete

包装方式 Tray

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买PT-120-G-C11-MPB
型号: PT-120-G-C11-MPB
制造商: Luminus Devices 朗明纳斯
描述:LED照明模块 Green 525nm 3500lm @ 30A
