PT02SE-14-19S

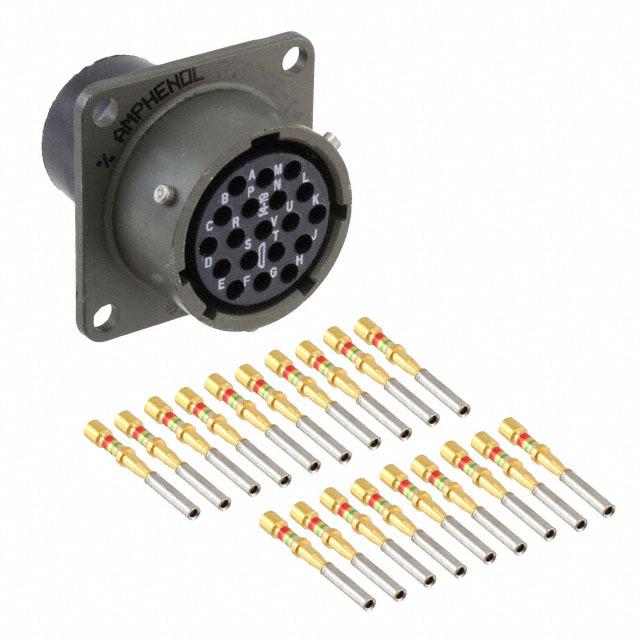

AMPHENOL  PT02SE-14-19S  圆形连接器, PT-SE Series, MIL-DTL-26482 Series I Equivalent, 盒式安装插座, 19 触点, 压接插座, 卡口, 14-19

The from is PT-SE series, MIL-DTL-26482 series I equivalent box mount receptacle with 19 contacts. The PT-SE series miniature cylindrical connectors offer high density contact arrangements in a circular shell with salt spray exposure of 48hour, 500hour. These connectors have 5 key/keyway polarization with 3 point bayonet lock coupling for positive mating with no chance of cross plugging. Spring tension provided by a wave washer in the coupling nut ensures maintenance of interfacial seal between mating halves. Both the insert and main joint gasket are moulded from resilient neoprene insulator. These connectors are designed for harsh environments and have well-proven electrical capability to withstand extreme shock, exposure and vibration. The high reliability performance makes PT-SE series ideal for environmental sealing or pressurized applications.

.

Quick disconnect bayonet coupling for rapid mating and unmating

.

Intermateable, intermountable and interchangeable with all MIL-DTL-26482 connectors

.

500 mating cycles

.

Operating temperature range from -55°C to +125°C

.

Crimp rear insertable/front release contact termination

.

Insulation resistance of 5000Mohm at 25˚C

.

Aluminium alloy body material with olive drab chromate over cadmium plating

.

Copper alloy crimp socket contacts with gold plating
