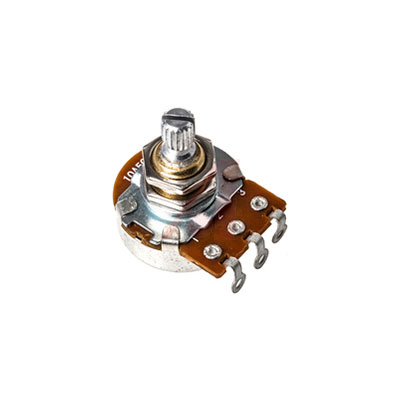

PDB241-GTR02-253A2

POT 25KΩ 24MM RD 0.25W1/4W CARB

Series PDB241-GTR is a low-torque 24 mm guitar potentiometer with metal shaft and bushing, carbon element, rear solder lugs, and choice of plain or knurled shaft. Other resistance values, long shafts and linear taper options available — contact your local Allied representative.

.

* Tolerance:** ±20%.** Operating Temperature:** –10°C to +70°C.** Power Rating:** 0.25 Watts. **Maximum Operating Voltage:** 250 V. **Rotational Noise:** 150 mV Max.** Mechanical Angle:** 300° ±5°. **Torque:** 10 to 45 g-cm.** Rotational Life:** 15K cycles min.** Hardware: **2 flat washers and 2 mounting nuts supplied per potentiometer.
