PRM162-K420K-103B1参数规格_中文资料_数据手册PDF

PRM162-K420K-103B1概述

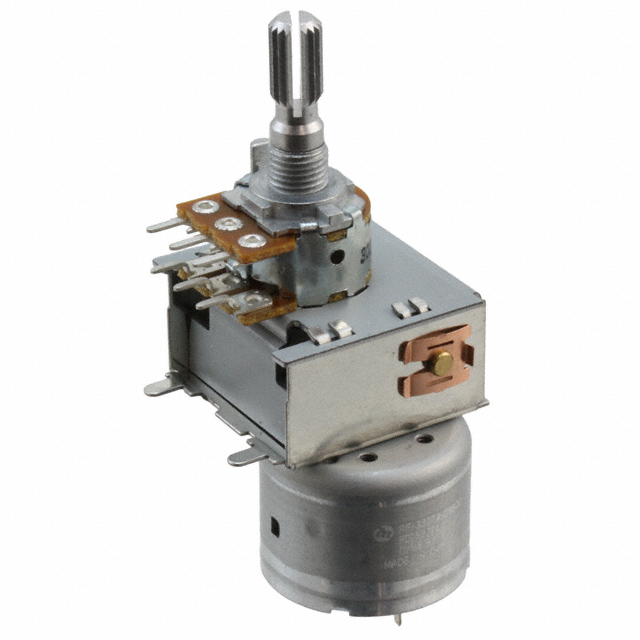

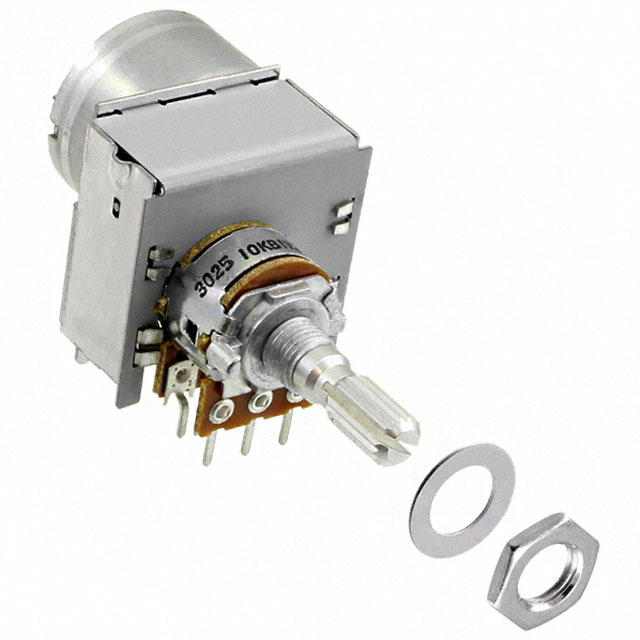

Res POT 10KΩ 20% 0.05W1/20W 6mm 68.35 X 34.7 X 32.5mm Pin Panel Mount/Through Hole

Optimization and calibration of resistance in a circuit has never been easier with this potentiometer from Bourns!

艾睿:
Optimization and calibration of resistance in a circuit has never been easier with this PRM162-K420K-103B1 potentiometer from Bourns!

安富利:
Res POT 10K Ohm 20% 1/20W 6mm 68.35 X 34.7 X 32.5mm Pin Panel Mount/Through Hole

Verical:
Res POT 10K Ohm 20% 0.05W1/20W 1Elec/1MechTurns 6mm 68.35 X 34.7 X 32.5mm Pin Panel Mount/Through Hole

MASTER:
Res POT 10K Ohm 20% 0.05W1/20W 1Elec/1MechTurns 6mm 68.35 X 34.7 X 32.5mm Pin Panel Mount/Through Hole

PRM162-K420K-103B1中文资料参数规格

技术参数

容差 ±20 %

额定功率 0.05 W

电阻 10 kΩ

工作温度Max 70 ℃

工作温度Min -10 ℃

封装参数

安装方式 PCB, Panel

引脚数 3

封装 Tray

外形尺寸

高度 32.5 mm

封装 Tray

物理参数

工作温度 -10℃ ~ 70℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买PRM162-K420K-103B1

型号： PRM162-K420K-103B1

制造商： Bourns J.W. Miller 伯恩斯

描述：Res POT 10KΩ 20% 0.05W1/20W 6mm 68.35 X 34.7 X 32.5mm Pin Panel Mount/Through Hole
