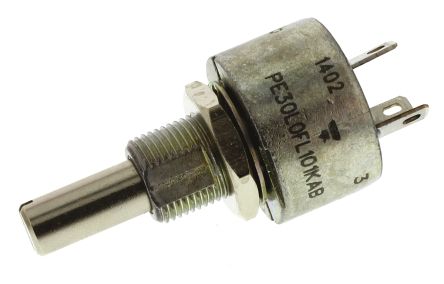

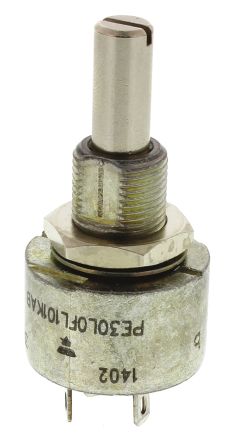

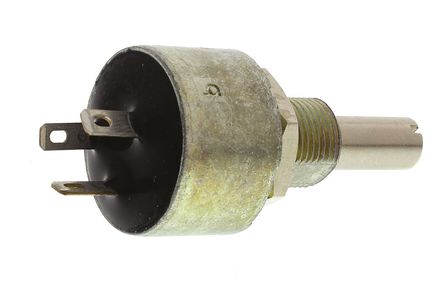

PE30L0FL101KAB

VISHAY  PE30L0FL101KAB  旋转电位器, 金属陶瓷, PE30系列, 100 ohm, 线性, 1 转, 3 W, 面板

The PE30 series are cermet, through hole sealed potentiometer. These potentiometers are mainly suitable for military and professional applications.

.

19.7mm round panel mount potentiometer

.

Sealing is IP67 rated

.

Resistance value ranges from 22ohm to 10Mohm

.

±20% tolerance

.

Maximum power rating is 3W

.

Operating temperature range -55°C to +125°C

.

Linear/logarithmic variations available

.

Low Temperature coefficient is 150ppm/°C typical

.

Tests according to CECC 41000 or IEC 60393-1 standards

.

Centre detent option
