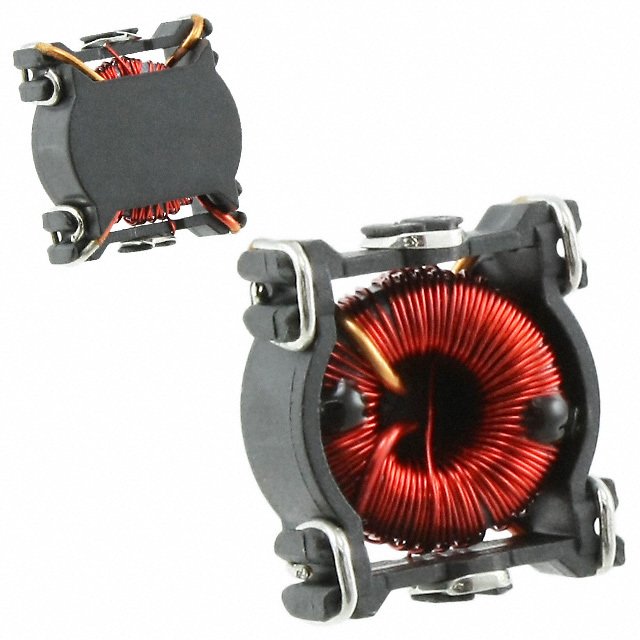

PE-68210NLT

Current Transformer 1:1:50 500Vrms 0.001Ω Prim. DCR 0.38Ω Sec. DCR 15000mA Prim. 6Term. SMD

1：1：50 电流互感器 50kHz ~ 500kHz 初级侧 1.15 毫欧，次级侧 380 毫欧 3.8 mH 表面贴装型

得捷:
CURR SENSE XFMR 1:1:50 SMD

贸泽:
Current Transformers SMD Current Sense 3800uH .38Ohms

艾睿:
Do you need to safely measure the current in a high voltage and high current circuit? Then use this PE-68210NLT current transformer from Pulse to step down the high alternating current first! It has an operating frequency of 50K to 500K Hz. This current transformer has a minimum operating temperature of -40 °C and a maximum of 130 °C. It has 6 terminals. The maximum DCR on the primary side is 0.001 Ohm, while its 0.38 Ohm on the secondary side. It also has a current sense transformer. It has a turn ratio of 1:1:50. This product is 14.61 mm long, 7.11 mm tall and 12.57 mm deep.

安富利:
Current Transformer 1:1:50 500Vrms 0.001Ohm Prim. DCR 0.38Ohm Sec. DCR 15000mA Surface Mount

Verical:
Current Transformer 1:1:50 500Vrms 0.001Ohm Prim. DCR 0.38Ohm Sec. DCR 15000mA Prim. 6 Terminal SMD

CDI:
TRANSFORMER
