PSPT-500-1-WT概述

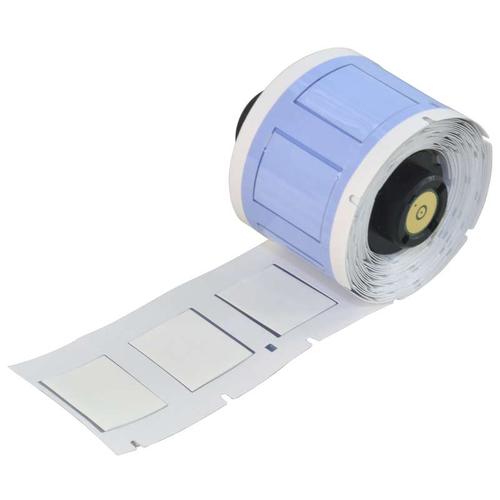

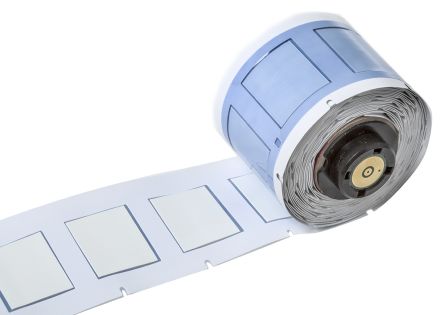

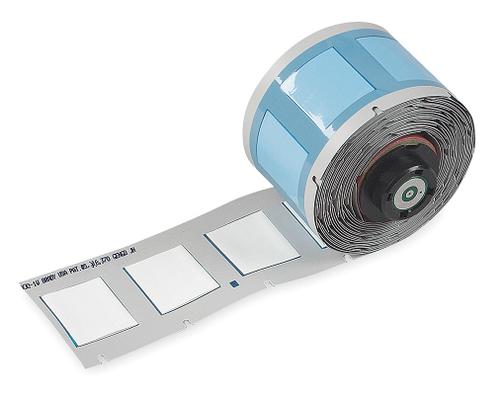

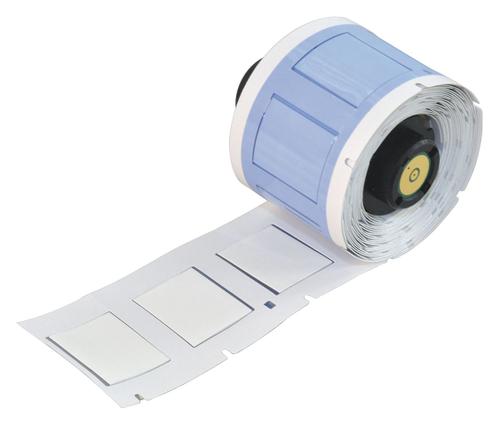

BRADY  PSPT-500-1-WT  线缆标记, 3:1, 21.61mm x 25.78mm, Blank No Legend

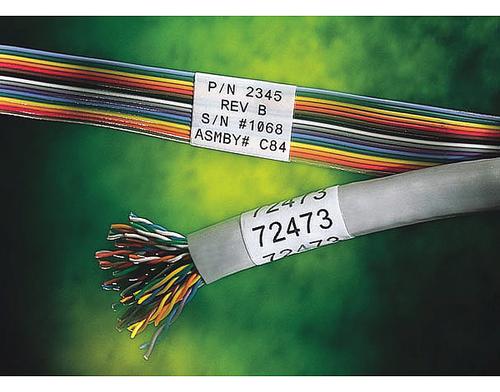

The is a white PermaSleeve® heat-shrinkable Wire Marker Sleeve made of polyolefin with matte finish. The 18461 sleeve can be printable through the TLS 2200® and TLS-PC Link® thermal transfer portable printers. This label is compatible with the TLS 2200, TLS-PC Link BMP71 and BMP61 printers. It is used for panel identification, wire and cable marking.

.
One-sided printable
.
R4310 Recommended ribbon series
.
Self-extinguishing
.
3:1 Shrink ratio
.
22 Maximum characters per line for font #2
.
7 Maximum lines of text for font #2
PSPT-500-1-WT中文资料参数规格
技术参数

工作温度Max 105 ℃

工作温度Min -53.88 ℃

外形尺寸

长度 25.48 mm

宽度 21.62 mm

高度 25.8 mm

物理参数

颜色 White

材质 Polyolefin

其他

产品生命周期 Active

制造应用 Industrial, 国防, 工业, Aerospace, Defence, Military, 军用与航空, 国防, 军用与航空

符合标准

RoHS标准 RoHS Compliant

REACH SVHC标准 No SVHC

军工级 Yes

海关信息

ECCN代码 EAR99

数据手册

在线购买PSPT-500-1-WT
型号: PSPT-500-1-WT
制造商: Brady
描述:BRADY  PSPT-500-1-WT  线缆标记, 3:1, 21.61mm x 25.78mm, Blank No Legend
