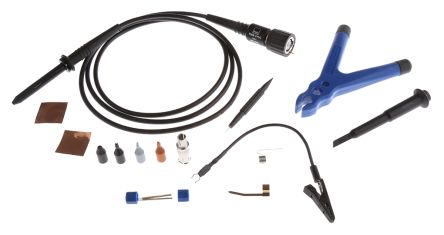

PMK 无源探头一系列高性能微型无源探头带 BNC 连接器或 4 mm 插头以适合多种仪器。 所有探头均配有弹簧加载探针尖端 未安弹簧的实心探针随附两种尺寸的弹簧端部。 各探头均随附基本探头配件，或者作为备用套件提供。CeramcoreTM Hybrid 探头 同轴设计 可互换弹簧端部 0.8 或 0.38 mm 直径 ### 无源示波器探头### 注提供该系列的所有产品，与带有永久接地线的工具一起使用。

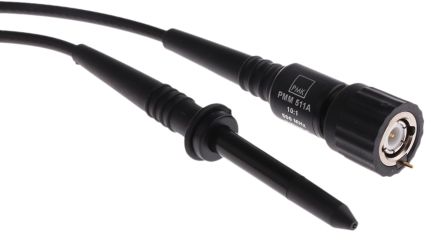

The is a High Impedance Passive Probe for instruments having 1MR input resistance. This probe is recommended for high performance probing applications and is adjustable for low and high frequencies. The probe is rated with 300V CAT II maximum input voltage and complies with latest safety standards. It features CeramCore™ technology. The probe"s entire core is made of a high quality ceramic hybrid. Pure coaxial design and laser trimmed resistors ensure highest signal fidelity along the signal path offering high bandwidth and fast rise-times for accurate impulse measurements. It is equipped with s signature spring loaded, needle sharp tips to support precise and safe measurements minimizing the risk of slipping off the board and produce a short circuit. Probe tips are interchangeable and can be replaced easily.
- .
- Coaxial design
- .
- Interchangeable spring contact tips 0.8 and 0.38mm diameter
- .
- New IC contacting system for 0.8 to 1.27mm pitch
- .
- 0.7ns Typical system rise time
- .
- Pollution degree 2
The maximum input voltage rating of the probe decreases as the frequency of the applied signal increases.
