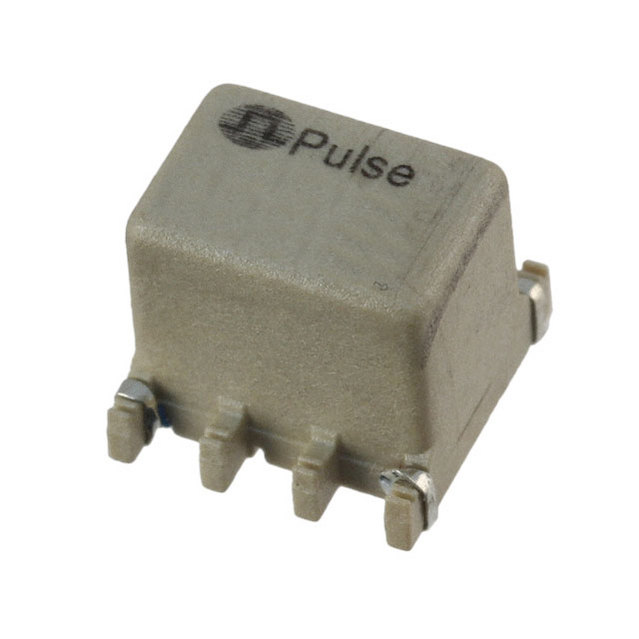

PA0184NLT

变压器, 1:1, AEC-Q200, 1.2MH

is manufactured by and is categorized in the Pulse Transformers category. PA0184NLT is described as PULSE XFMR 1:1 1.2MH. Perfect Parts is a supplier of Transformers and other Miscellaneous.

得捷:
PULSE XFMR 1:1 1.2MH

e络盟:
变压器, 1:1, AEC-Q200, 1.2MH

艾睿:
This PA0184NLT pulse transformer from Pulse is optimized for transmitting electrical pulses of digital information. This pulse transformer has a minimum operating temperature of -40 °C and a maximum of 130 °C. It has 8 terminals. It also has a gate drive transformer. It has a turn ratio of 1:1. This product is 9.02 mm long, 7.62 mm tall and 8.64 mm deep. The maximum DCR on the primary side is 0.91 Ohm, while its 0.91 Ohm on the secondary side.

安富利:
Pulse Transformer 1:1 1500Vrms 0.91Ohm Prim. DCR 0.91Ohm Sec. DCR 27.2Vus Surface Mount

富昌:
XFRMR GATE DRIVE 1:1 SMD

Chip1Stop:
Pulse Transformer 1:1 1500Vrms 0.91Ohm Prim. DCR 0.91Ohm Sec. DCR 8Term. SMD

Verical:
Pulse Transformer 1:1 1500Vrms 0.91Ohm Prim. DCR 0.91Ohm Sec. DCR 8 Terminal SMD

儒卓力:
**PA0 1:1 LOW-PROFILE GATE DRIVER **

Win Source:
XFRMR GATE DRIVE 1:1 SMD
