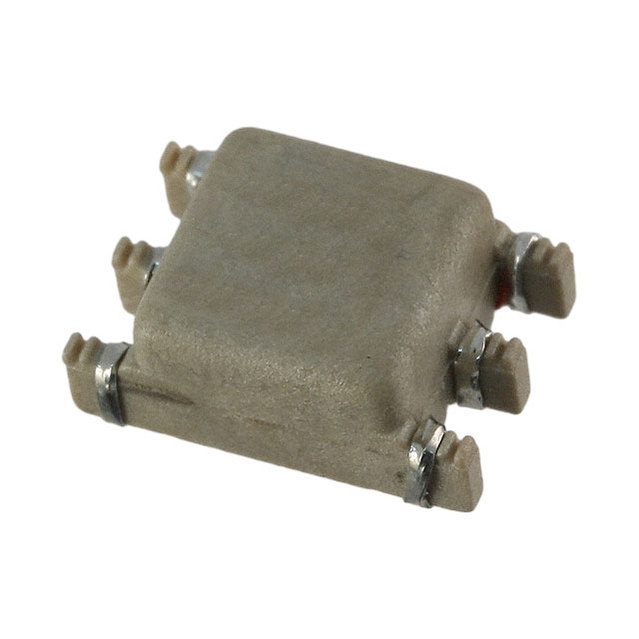

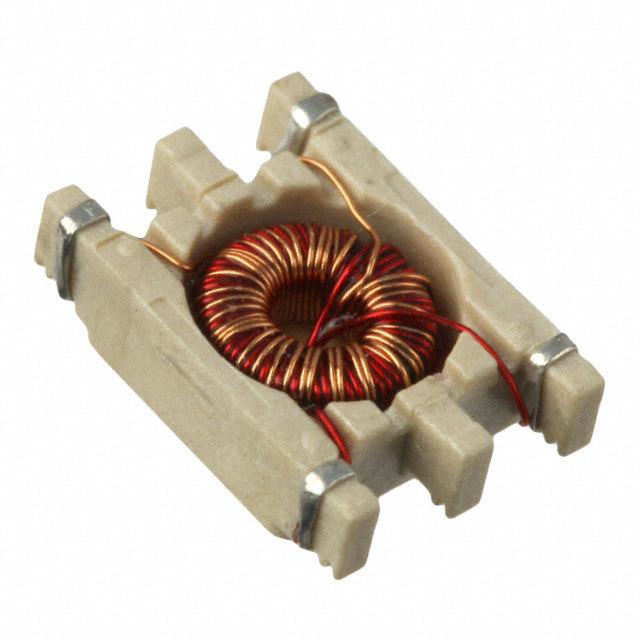

变压器, 1:1:1, AEC-Q200, 1.14MH
1.14mH - 脉冲 1:1:1 表面贴装型
得捷:
PULSE XFMR 1:1:1 1.14MH
e络盟:
变压器, 1:1:1, AEC-Q200, 1.14MH
艾睿:
If your circuit transmits digital information then this PA0264NLT pulse transformer from Pulse will easily produce electrical pulses from the frequencies in your circuit. This pulse transformer has a minimum operating temperature of -40 °C and a maximum of 130 °C. It has 6 terminals. It also has a gate drive transformer. The maximum DCR on the primary side is 0.75 Ohm, while its 0.75 Ohm on the secondary side. This product is 6.73 mm long, 3.56 mm tall and 8.64 mm deep. It has a turn ratio of 1:1:1.
安富利:
Pulse Transformer 1:1:1 1500VDC 0.75Ohm Prim. DCR 0.75Ohm Sec. DCR 12.7Vus Surface Mount
Chip1Stop:
Pulse Transformer 1:1:1 1000Vrms 0.75Ohm Prim. DCR 0.75Ohm Sec. DCR 6Term. SMD
Verical:
Pulse Transformer 1:1:1 1000Vrms 0.75Ohm Prim. DCR 0.75Ohm Sec. DCR 6 Terminal SMD Automotive
儒卓力:
**PA0 1:1:1 LOW-PROFILE GATE DRIV **
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PA0264NLT Pulse Electronics 普思电子 | 当前型号 | 当前型号 |
PA0264NL 普思电子 | 功能相似 | PA0264NLT和PA0264NL的区别 |
PA0264T 普思电子 | 功能相似 | PA0264NLT和PA0264T的区别 |
PA0185T 普思电子 | 功能相似 | PA0264NLT和PA0185T的区别 |
