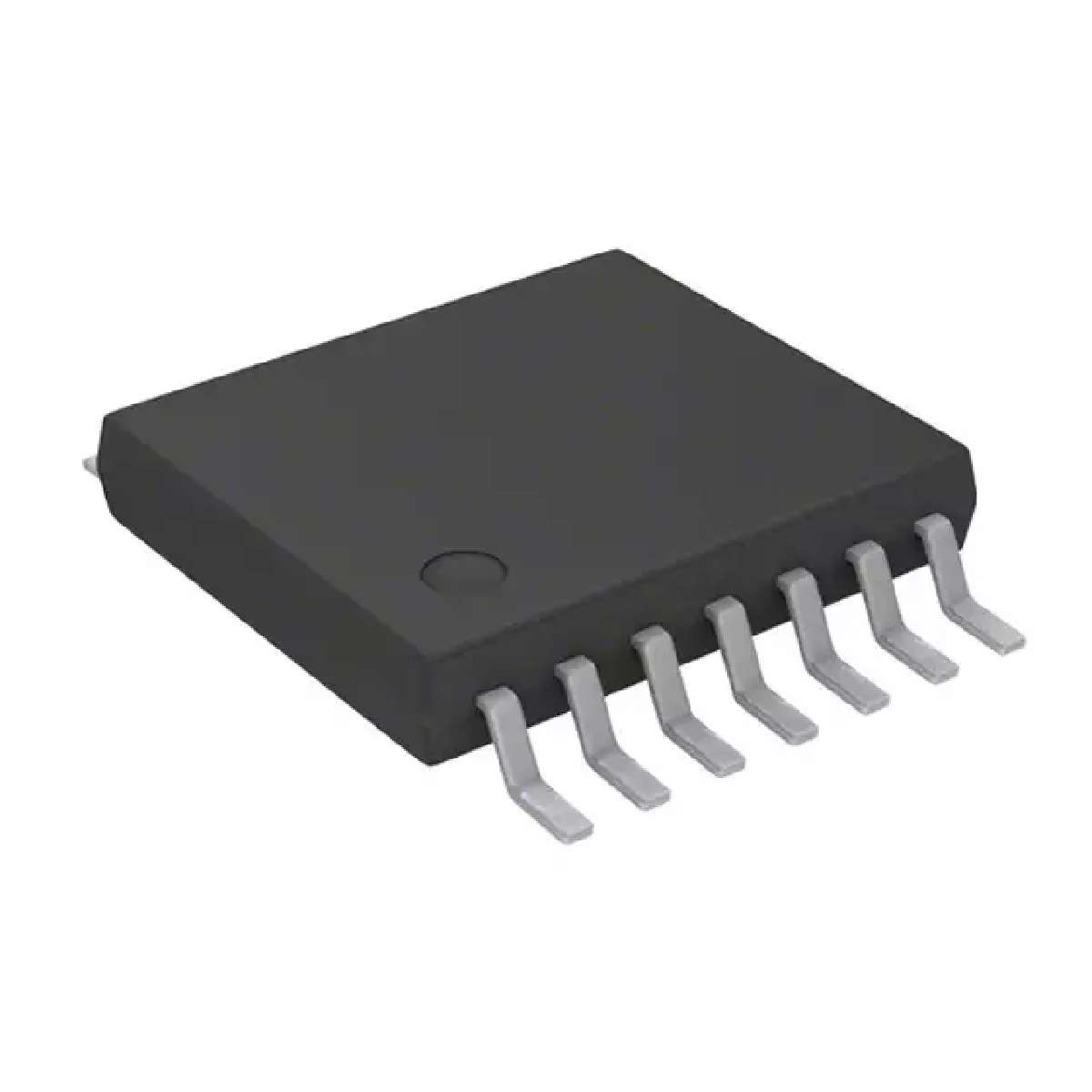

PIC12LF1840T48A-I/ST

MICROCHIP  PIC12LF1840T48A-I/ST  微控制器, 8位, 闪存, PIC12LF18xx, 32 MHz, 7 KB, 256 Byte, 14 引脚, TSSOP

The is an enhanced mid-range PIC12 family 8-bit powerful 200 nanosecond instruction execution yet easy-to-program CMOS flash based Microcontroller packs powerful PIC®RISC architecture with fully integrated RF Transmitter capable of operation in 418, 434, 868MHz Bands. This product offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including 7kB of addressable program memory size, 256bytes of data memory size, 6 general-purpose I/O pins, one comparator, 4-channel 10-bit analog-to-digital A/D converter and one 5-bit digital-to-analog D/A converter. This device operates at a maximum frequency of 32MHz wide operating voltage of 1.8 to 3.6V.

.

49 14-bit wide easy instructions to learn

.

16 level hardware stack

.

2 16-bit file select registers

.

Hardware interrupt handling with content save

.

Brown-out reset BOR

.

Low voltage detection

.

Power on reset POR

.

32kHz to 32MHz internal oscillator

.

Watch dog timer WDT

.

Internal voltage reference Bandgap

.

Two 8-bit digital timers

.

One 16-bit digital timer

.

1x Enhanced Capture/Compare/PWM ECCP

.

Local interconnect network LIN

.

4x Capacitive touch channels

.

In-Circuit Serial Programming™ ICSP™

.

256bytes of EEPROM data memory

.

Fully integrated transmitter

.

FSK operation up to 100kbps

.

OOK operation up to 10kbps
