PCIE-036-02-F-D-EMS2

SAMTEC  PCIE-036-02-F-D-EMS2  连接器, PCIE系列, PCIe, 36 触点, 插座, 1 mm, 表面安装

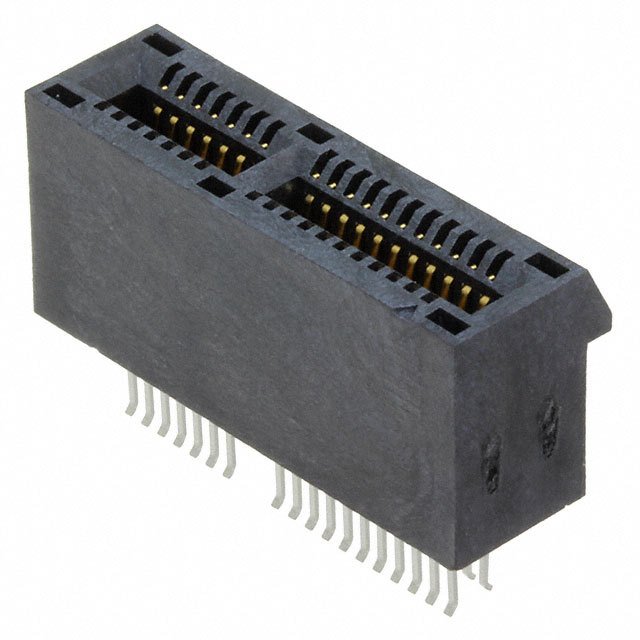

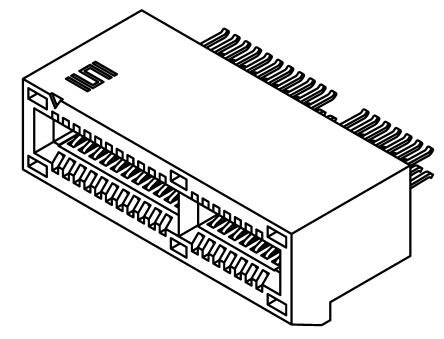

The is a 36-position 2-row edge mount PCI EXPRESS® Card Socket with gold-plated phosphor bronze contacts and a liquid crystal polymer insulator. It accepts 0.062-inch 1.60mm thick cards.

.

2.2A Current rating per pin

.

-55 to +125°C Operating temperature range

欧时:
### PCIE Series PCI Express Card SocketsThese PCIE Series PCI Express Sockets from samtec take 1.60 mm cards with a nominal insertion depth of 8.0 mm. The contacts of this range of PCIE Series PCI Express Sockets have Gold Flash plating with Tin plating on the PCB tails. The above board height of the PCIE Series Through Hole, RA, PCI Express Sockets is 9.45 mm with a width of 18.85 mm. The above board height of the PCIE Series Through Hole, Vertical, PCI Express Sockets is 11.0 mm with a width of 8.6 mm. The board extension length of the PCIE Series Edge Mount, PCI Express Sockets is 11.05 mm with a width of 8.41 mm. Post lengths for the Through Hole vertical and horizontal versions of the PCIE Series, PCI Express Sockets are 2.31 mm in four staggered rows on a 2.0 mm pitch. Post length for the Edge Mount version of the PCIE Series, PCI Express Sockets is 4.5 mm.### 板边连接器 - Samtec

得捷:
CONN PCI EXP FMALE 36POS 0.039

立创商城:
1mm P数:36

e络盟:
卡边连接器, PCIe, 双侧, 1.57 mm, 36 触芯, 卡边安装, 直行, 焊接

艾睿:
Conn PCI Express Card Edge F 36 POS 1mm Solder ST Edge Mount Tube

安富利:
Conn Card Edge SKT 36 POS 1mm Solder ST Thru-Hole

Verical:
Conn PCI Express Card Edge F 36 POS 1mm Solder ST Edge Mount Tube

Newark:
# SAMTEC  PCIE-036-02-F-D-EMS2  Connector, PCIE Series, PCIe, 36 Contacts, Receptacle, 1 mm, Surface Mount
