PR02000201503JR500

VISHAY  PR02000201503JR500  通孔电阻器, PR02系列, 150 kohm, 2 W, ± 5%, 500 V, 轴向引线

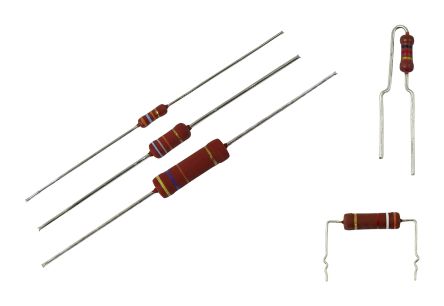

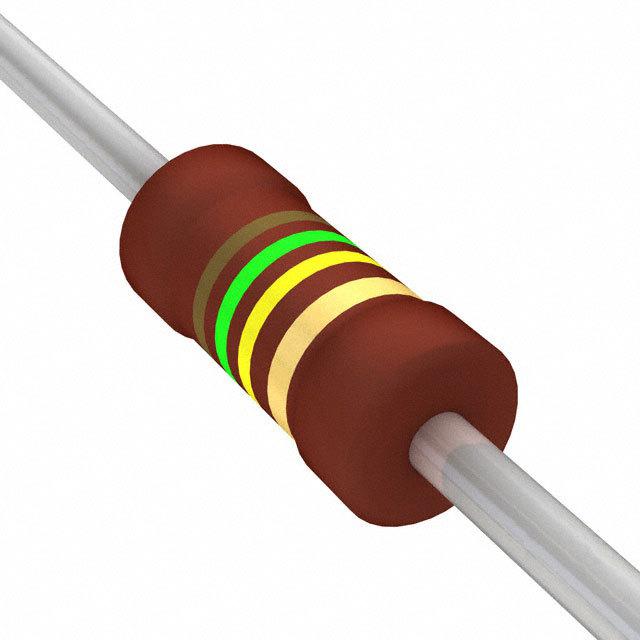

A homogeneous film of metal alloy is deposited on a high grade ceramic body. After a helical groove has been cut in the resistive layer, tinned connecting wires of electrolytic copper or copper-clad iron are welded to the end-caps. The resistors are coated with a red, nonflammable lacquer which provides electrical, mechanical and climatic protection. This coating is not resistant to aggressive fluxes. The encapsulation is resistant to all cleaning solvents in accordance with “MIL-STD-202E, method 215”, and “IEC 60068-2-45”.

**Features**

* High Power in Small Packages

* Defined Interruption Behaviour
