PM105-100M

10uH ±20% 2.6A

无屏蔽 绕线 器 60 毫欧 非标准

得捷:
FIXED IND 10UH 2.6A 60 MOHM SMD

艾睿:

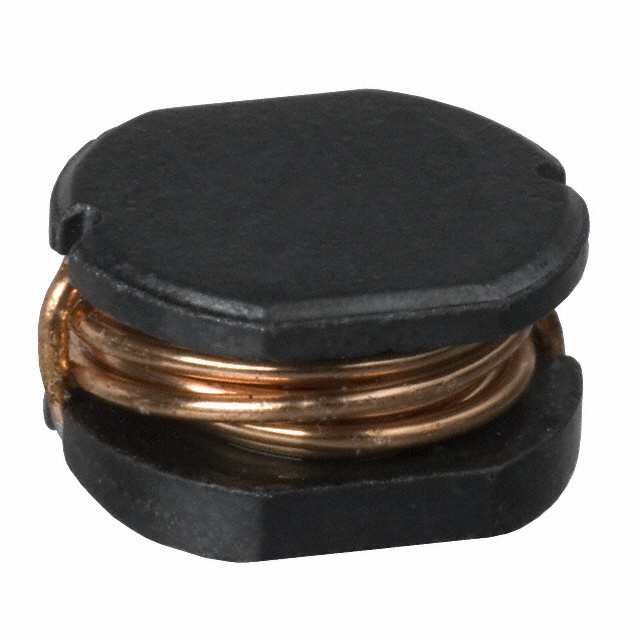

Save valuable space on a PCB with this power PM105-100M surface mount inductor from Bourns. This SMD inductor has an operating temperature range of -30 °C to 100 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This device utilizes bobbin core technology. It has a tolerance of 20%. Its test frequency is 2.52M Hz, while its minimum self-resonant frequency is 25MTyp Hz. This product is 10.4 mm long, 5.8 mm tall and 9.4 mm deep. This SMD inductor has a maximum DC current of 2.6 A with a maximum resistance of 60m Ohm. It has an inductance of 10u H.
