TACHOMETER LED 6 CHAR 85-250V

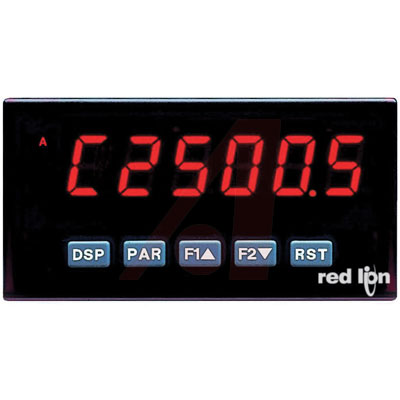

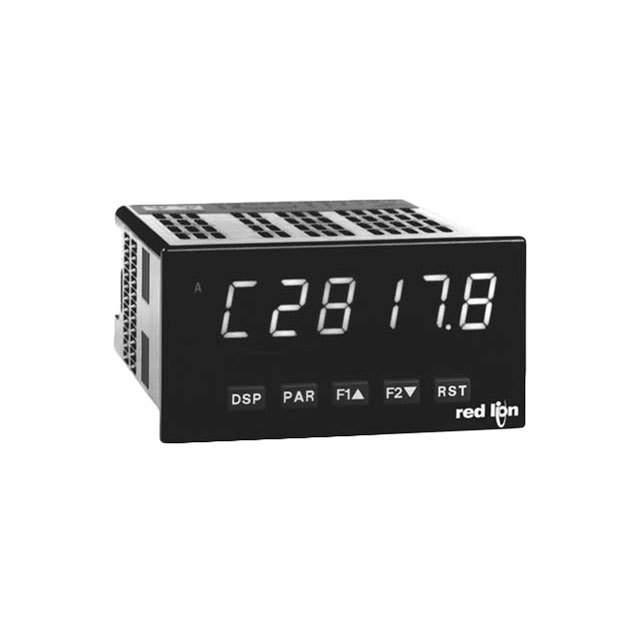

The PAXDR is a 5-digit Dual Rate Indicator and 6-digit Dual Totalizer in a single meter. Two Rate and two Total displays are provided A and B, along with two additional calculation displays C to show the Sum, Difference, Ratio, % of Total or Draw between A and B displays.The meter’s LED display has 0.56" digits, available in red sunlight readable or standard green. The display intensity is adjustable for low level lighting conditions up to sunlight readable applications.The meter has two signal inputs from which the Rate and Totalizer values are derived.
Optional plug-in cards provide up to four setpoint outputs, a linear DC output and communications capability. The Plug-in setpoint cards provide dual FORM-C relays 5 A, quad FORM-A relays 3 A, or either quad sinking or quad sourcing open collector logic outputs. The outputs can be assigned to any of the Rate or Totalizer display values, and configured to suit a variety of control and alarm requirements.
**Features:
* **Six Displays - One Each For: Rate A & B; Totalizer A & B; Display C Rate Calculation & Totalizer Calculation
**
* **0.56" Red Sunlight Readable Display **
* **Variable Intensity Display**
* **10 Point Non-Linear Scaling For Both Rate Displays **
* **Separate Input Scaling For A And B Totalizers**
* **Programmable Function Keys/User Inputs**
* **Four Setpoint Alarm Outputs W/Option Card**
* **Retransmitted Analog Output W/Option Card
**
* **Communication And Bus Capabilities W/Option Card
**
* **Nema 4x/Ip65 Sealed Front Bezel
