COUNTER LED 6 CHAR 50-250V PANEL

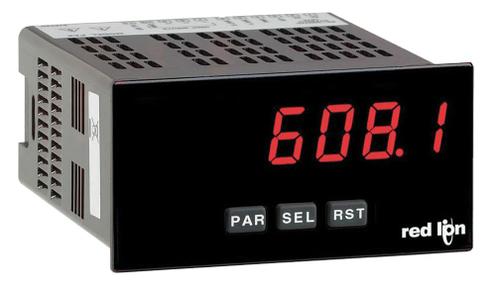

The PAX Lite Counter/Rate Meter is a 6-digit dual counter and rate indicator. The PAXLCR provides up to three functions in a single display package. The display can be toggled either in manually or automatically between the rate and counter displays. The counters may be programmed for the one of eight different count modes. The counters and rate indicator have separate scaling and decimal point placement for read-outs in different engineering units. Input A accepts a signal for the count and rate displays. Input B accepts a signal for the count display or direction control. In the anti-coincidence mode, both inputs are monitored simultaneously so that no counts are lost. The rate indicator has programmable low minimum and high maximum update times to provide optimal display response at any input frequency. There is a programmable user input that can be set for one of a variety of functions.
**Features:**
* 0.56" High Digits 14.2 mm Red LED Display
* Programmable Decimal Point
* Front Panel and Remote Reset
* Control Capability
**Specifications:**
* Power Supply — Universal Supply 50-250 VAC or 22-250 VDC
* Sensor Excitation: 24 VDC
* Rate Minimum Input Frequency: 0.01 Hz
* Rate Maximum Frequency: 25 kHz
* Count Speed up to 25 kHz
* Programmable Prescaler for Totalizing
* Batch Counting Capabilities
* Bi-Directional Counting, Up-Down Control, Quadrature Sensing
* Dual 5 Amp From-C Relays for Control Capability
