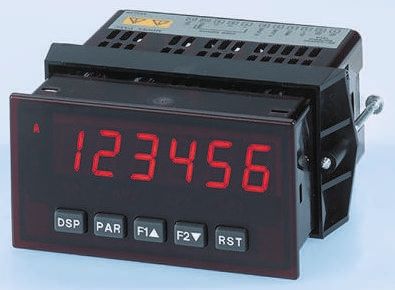

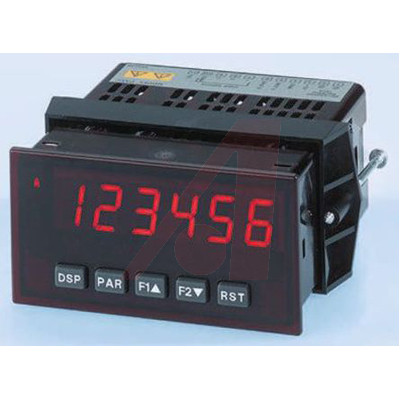

PAXC/R - counter, tachometerLED display, 14 mm character height PAXC: Total counter or pre-set counter PAXR: Tachometer: Display or with limit output Pulse input: Max. 34 kHz, can be adapted to all sensors Plug-in options: 2 or 4 limit values/pre-sets Inputs: | Adjustable for all sensors | ---|---|--- | Functions: PAXC: 2 separate up/down counters, difference, total, position display for rotary encoders with 2 channels x1, x2, x4, | | PAXR: Tachometer | Display capacity: | PAXC: 6-digit, 14 mm high red LED, | | PAXR: 5-digit, 14 mm high red LED | Indicators: | SP1-4: Output 1-4 is active | | PAXC: A, B, C: counter A, B, C | | PAXR: | r: Tachometer | | H: maximum value | | L: Minimum value Counter PAXC only: | 2 independent and scalable internal 9-digit counters. A third counter capable of displaying the total or difference | Tachometer PAXR only: | 1 scalable tachometer with continuous period measurement | | | Procedure: | Simple operation using 5 buttons | Projection: | Fast and menu-driven configuration with 5 buttons | User inputs: | 3 programmable inputs are available. | | Reset total/display/min/max value, programming lock | Power supply: | 11 to 36 V dc, 14 W or 24 V ac ±10%. 15 VA | Sensor power supply: | 12 V dc ±10 %, max. 100 mA | Output option cards: | Very easy to upgrade | . | 1\. 2 x relay changeover contact 5 A at 120 / 230 V ac | | 2\. 4 x N/O relays 3 A at 250 V ac | Housing: | Shockproof plastic housing | | IP65 front | | Dimensions H x W x D: 48 x 96 x 105 mm | Connection: | Secure terminal strips | Ambient temperature: | Operation: 0°C to +50°C | | Storage: -40°C to +85°C | ### 面板安装 96 x 48
The PAX Digital Input Panel meter offers many features and performance capabilities to suit a wide range of industrial applications. This meter is available in three different models, one which offers both counting and rate in the same package.
* Sunlight Readable LED Display
* Up to 3 Count Displays
* Programmable Scale Factors
* Programmable Function Keys/User Inputs
* EMA 4X/IP65
* Four Set-Point Alarm Outputs With Plug-In Card
得捷:
COUNTER LED 6 CHAR 24V PANEL MT
欧时:
COUNTER, PAX C
Allied Electronics:
Counter; 1/8 DIN; 6 Digit .56 Red LED Display; Power: 11-36 VDC
Newark:
# RED LION PAXC0010 Counter, Digital Input, Model PAX, 6 Digits, LED, 85 Vac to 250 Vac, 14 W
