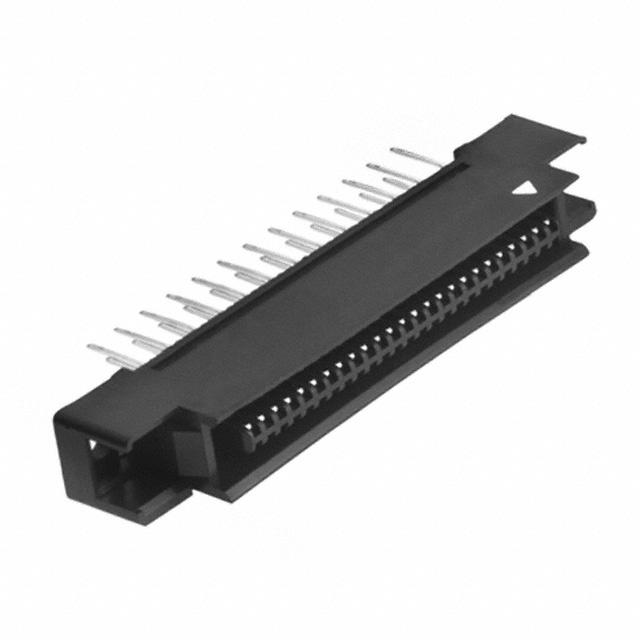

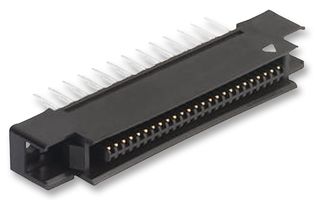

3M P50E-050P1-S1-EA 输入输出连接器, P50E系列, 线至板, 插头, 50 触点, 通孔安装, 电路板安装
针座 通孔 50 位置 0.050"（1.27mm）
得捷:
CONN HEADER VERT 50POS 1.27MM
e络盟:
输入输出连接器, P50E系列, 线至板, 插头, 50 触点, 通孔安装, 电路板安装
艾睿:
3M brings you their P50E-050P1-S1-EA USB connector, great for making a strong, reliable connection between two different circuits. This is a 2-row connector. Its pitch is 2.54 mm. It has a plug type gender. This plug connector&s;s 50 contacts that are made out of copper alloy and plated with gold over nickel. It has a straight body orientation. P50E-050P1-S1-EA is housed in nylon. This device has a maximum current rating of 0.5 A. This harting connector has an operating temperature of -55 to 85 °C. It uses the solder termination method. This product is 46.88 mm long, 10.7 mm tall and 7 mm deep.
Chip1Stop:
Conn Rectangular PL 50 POS 2.54mm Solder ST Thru-Hole
触点数 50
极性 Male
触点电镀 Gold
额定电流 0.5 A
绝缘电阻 1000 MΩ
排数 2
针脚数 50
额定电流Max 0.5 A
工作温度Max 85 ℃
工作温度Min -55 ℃
安装方式 Through Hole
引脚间距 1.27 mm
长度 46.88 mm
宽度 7 mm
高度 10.7 mm
引脚间距 1.27 mm
颜色 Black
触点材质 Copper
材质 Copper Alloy
工作温度 -55℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
制造应用 -, Industrial, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
