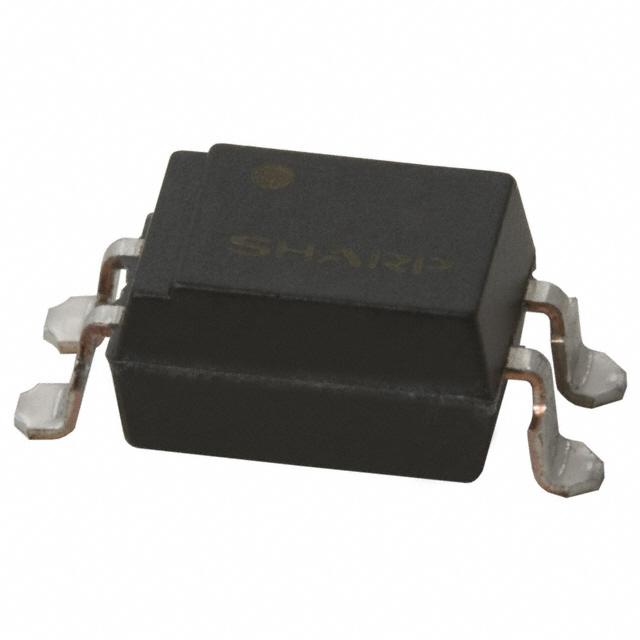

PC817XI2概述
Optocoupler DC-IN 1CH Transistor DC-OUT 4Pin PDIP SMD Sleeve
■ Description
PC817X Seriescontains an IRED optically coupled to a phototransistor. It is packaged in a 4pin DIP, available in wide-lead spacing option and SMT gullwing lead-form option. Input-output isolation voltagerms is 5.0kV. Collector-emitter voltage is 80V and CTR is 50% to 600% at input current of 5mA.
■Features
1\. 4pin DIP package
2\. Double transfer mold package Ideal for Flow Soldering
3\. High collector-emitter voltage VCEO:80V
4\. Current transfer ratio CTR : MIN. 50% at IF=5 mA, VCE=5V
5\. Several CTR ranks available
6\. High isolation voltage between input and output Visorms: 5.0 kV
