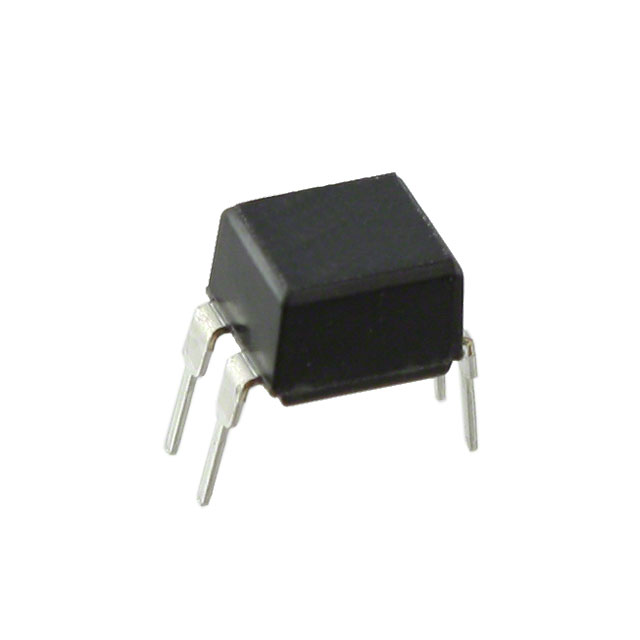

PC817X2

Optocoupler DC-IN 1CH Transistor DC-OUT 4Pin PDIP Sleeve

■ Description

PC817X Seriescontains an IRED optically coupled to a phototransistor. It is packaged in a 4pin DIP, available in wide-lead spacing option and SMT gullwing lead-form option. Input-output isolation voltagerms is 5.0kV. Collector-emitter voltage is 80V and CTR is 50% to 600% at input current of 5mA.

■Features

1\. 4pin DIP package

2\. Double transfer mold package Ideal for Flow Soldering

3\. High collector-emitter voltage VCEO:80V

4\. Current transfer ratio CTR : MIN. 50% at IF=5 mA, VCE=5V

5\. Several CTR ranks available

6\. High isolation voltage between input and output Visorms: 5.0 kV
