P5100A

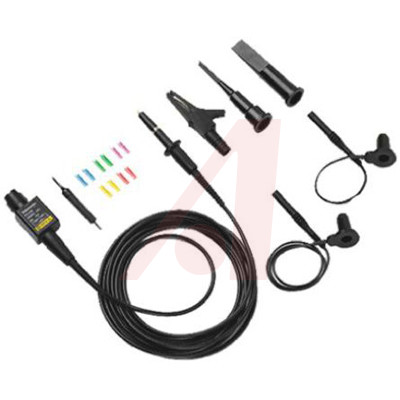

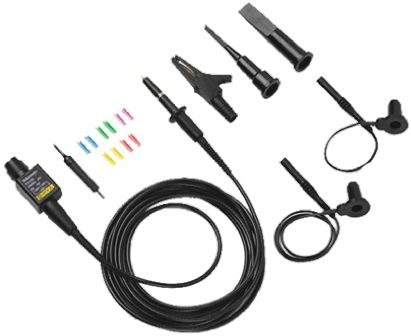

Tektronix P5100A 无源高电压探头P5100A 是低输入电容高电压 2.5 kV 探头，专为更高频率的应用设计。 可补偿该探头以匹配标称输入电容为 7 → 30 pF 的插件和示波器。 多种螺旋附件可轻松连接到测试的设备。应用包括电源设计、设计电动机驱动器、电子镇流器、功率半导体、开关模式控制、UPS 系统和电源转换器。2500 VPeak 1000 V CAT II 100X，带读数编码 ### 认可UL3111-1、EN61010-1、IEC61010-2-031、CSA1010.1、CSA1010.2.031### 随附电缆标识套件、鳄鱼夹、调整工具、hooktip（小号）、hooktip（大号）、18in 接地引线、6in 接地引线、说明手册 070-8151-04### 高电压示波器探头

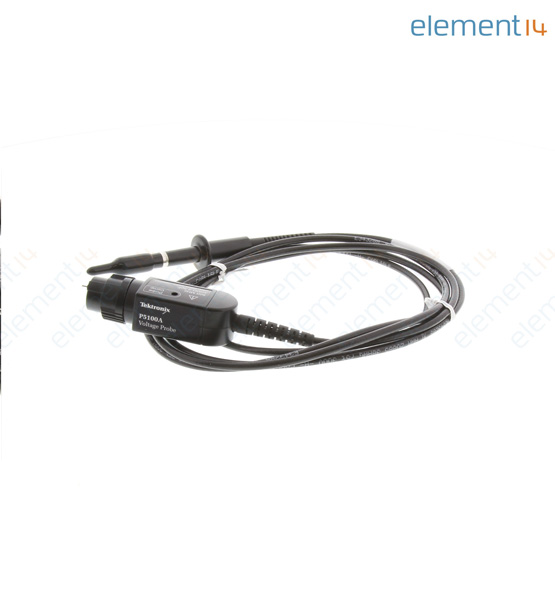

The from is a 500MHz passive high voltage probe. It is a safe high voltage probe solutions for ground referenced voltage testing. The P5100A low input capacitance probe is designed for higher frequency applications. The probe can be compensated to match plug-ins and oscilloscopes with nominal input capacitances of 7pF to 30pF. A variety of screw on accessories provides easy connection to device under test.

.

DC to 500MHz bandwidth

.

100X attenuation

.

Nominal length of 2m

.

100X attenuation

.

Rise time is typically less than 700ps

.

Maximum input voltage DC or RMS of 2.5KV peak and 1000Vrms CAT II
