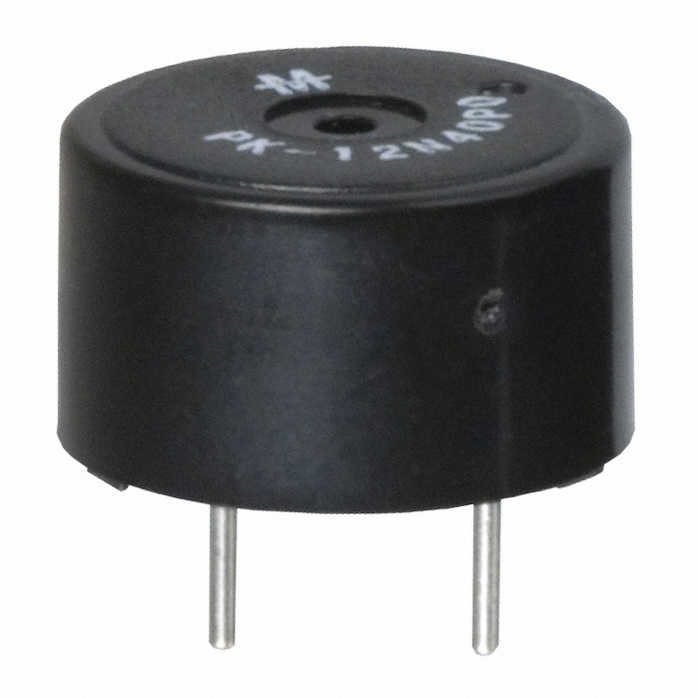

MALLORY PK-12N40PQ 警报器
Sonalert Indicators - Built-In Drive Circuitry, Various Mounting Options.
Indicators have internal drive circuitry and require only DC source voltage for operation.
**Cont. Tone; 3-15Vdc; 83dB; 4.1kHz; 13.8x7.5mm; PC Pins**
Features:
* Low current consumption and high sound output
* Extremely clear and penetrating sound
* Small size and light weight
* No electronic generated EMI or RFI
Applications
* Office equipment
* Communication equipment
* Home appliances
* Alarms
* Computers
* Vehicles
频率 4.1 kHz
电源电压DC 3.00V min
额定电流 10 mA
供电电流 5 mA
共振频率 4.1 kHz
工作温度Max 90 ℃
工作温度Min -20 ℃
额定电压 12 V
电源电压 3VDC ~ 15VDC
电源电压Max 15 V
电源电压Min 3 V
安装方式 Through Hole
封装 Radial
宽度 13.8 mm
高度 7.5 mm
直径 14.0 mm
封装 Radial
颜色 Black
重量 800 mg
工作温度 -20℃ ~ 90℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
