PX0911/04/S

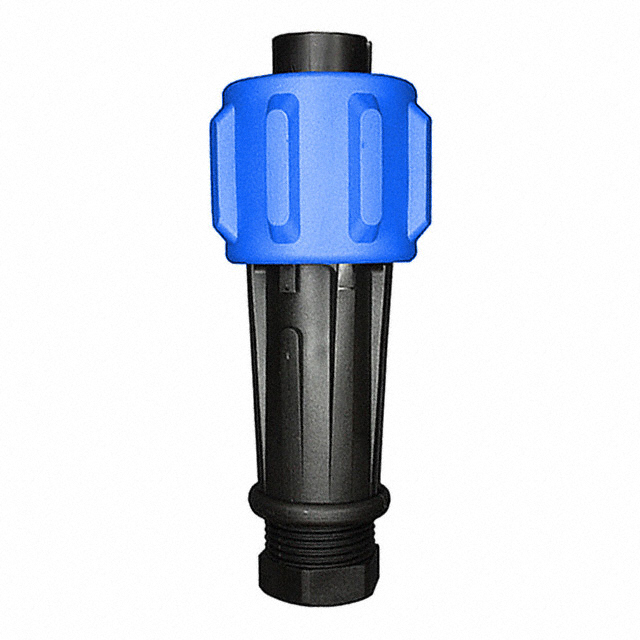

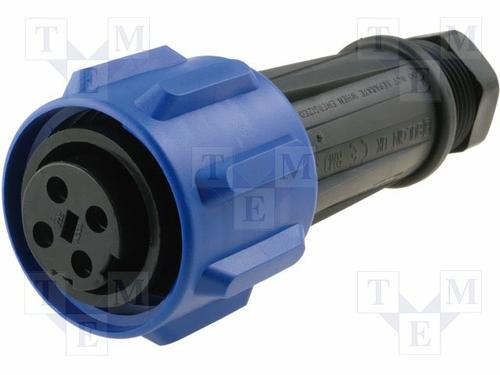

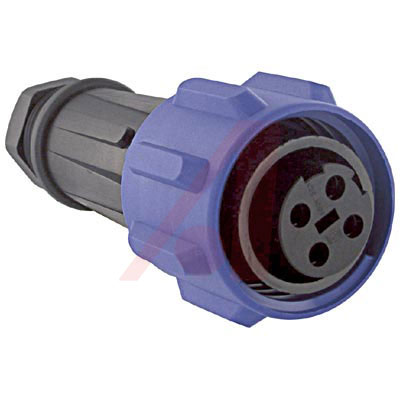

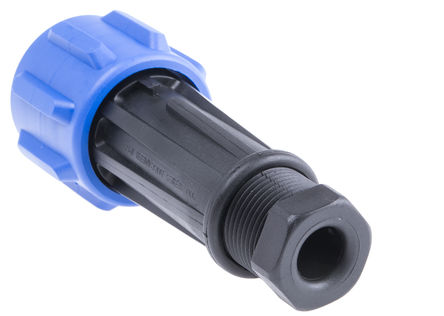

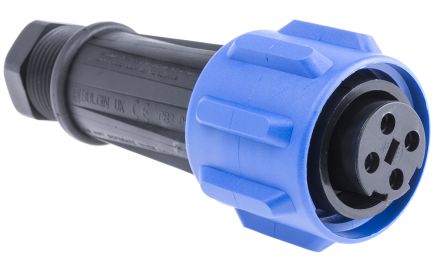

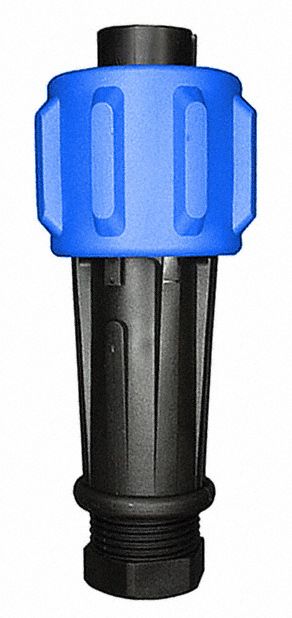

BULGIN  PX0911/04/S  圆形连接器, Buccaneer 900系列, 插座, 4 触点, 母, 螺丝, 电缆安装

Flex Cable Connector, Plug/Socket Mating Type, 32 Amps, 600 V, 10 Milliohms Max.

A range of 2-, 3-, 4-, 5- and 7-pole heavy duty, rugged connectors, suitable for single- and three-phase applications in a variety of harsh environments; such as sewage and water works, construction sites, gas/petrol chemical works, external lighting, HVAC equipment and general industrial uses.

.

* Specification: Current Rating:** Up to 32 A. ** Voltage Rating:** 600 VAC/VDC, 50/60 Hz 7-way, 430 V. ** Operating Temperature Range:** -40° to +85°C. ** Approvals:** UL, CSA, VDE. ** Housing Material:** Polyamide. ** Flamm. Rating:** UL94-V0. ** Cable Acceptance:** PX0 13-15 mm dia., 7-13 mm with gland pack. PXA 20-22 mm dia., 14-20 mm with gland pack. ** Sealing:** IP68, EN60529.

* Water and Dustproof to IP68, EN60529

* Leading Ground Pin

* Scoop-Proof Contacts

* Easy Assembly, No Special Tooling Required

* Field Serviceable, Screw Termination

* Positive Locking Keyways, Cannot Be Mis-Mated

* Standard Cable Acceptance 13-15 mm Dia. PX0, 20-22 mm Dia. PXA

* Cable Connector

* Mates with Inline Cable or Panel Styles

* Positive, Fast-Acting Locking-Ring

* Plug or Socket Versions
