P160KNP-0QD20B100K概述

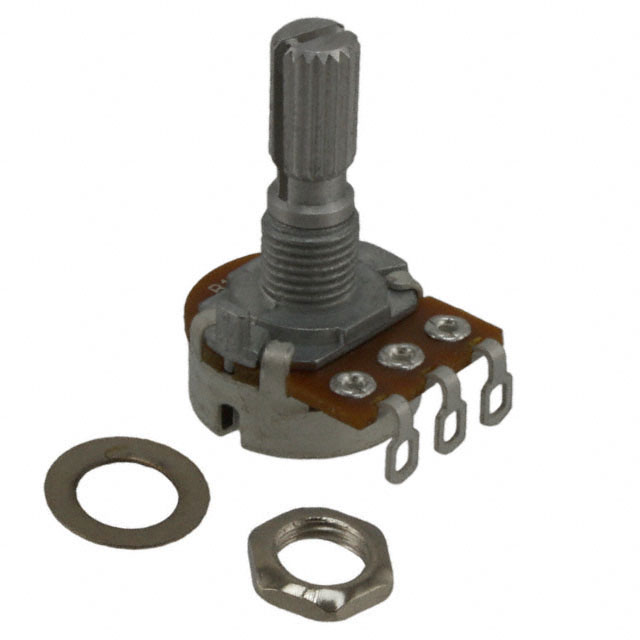

Res Conductive Plastic POT 100KΩ 20% 0.2W1/5W 1Elec/1MechTurn 6mm 29.5 X 17 X 21.5mm Solder Lug Panel Mount

100k Ohm 1 Gang Linear Panel Mount Potentiometer None 1 Kierros Conductive Plastic 0.2W, 1/5W Solder Lug

得捷:
POT 100K OHM 1/5W PLASTIC LINEAR

贸泽:
Potentiometers 16mm Rotary Panel Potentiometer

艾睿:
Res Conductive Plastic POT 100K Ohm 20% 0.2W1/5W 1Elec/1MechTurn 6mm 29.5 X 17 X 21.5mm Solder Lug Panel Mount

Chip1Stop:
Res Conductive Plastic POT 100K Ohm 20% 0.2W1/5W 1Elec/1MechTurn 6mm 29.5 X 17 X 21.5mm Solder Lug Panel Mount

P160KNP-0QD20B100K中文资料参数规格

技术参数

容差 ±20 %

额定功率 0.2 W

电阻 100 kΩ

工作温度Max 70 ℃

工作温度Min 20 ℃

额定电压 200 VAC

封装参数

安装方式 Solder Lug, Panel

封装 Round - 0.669" Dia x 0.374" W 17.00mm x 9.50mm

外形尺寸

长度 29.5 mm

宽度 17 mm

高度 21.65 mm

封装 Round - 0.669" Dia x 0.374" W 17.00mm x 9.50mm

其他

产品生命周期 Active

包装方式 Tray

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买P160KNP-0QD20B100K

型号： P160KNP-0QD20B100K

描述：Res Conductive Plastic POT 100KΩ 20% 0.2W1/5W 1Elec/1MechTurn 6mm 29.5 X 17 X 21.5mm Solder Lug Panel Mount
