PSMN012-80BS概述
NXP PSMN012-80BS 晶体管, MOSFET, N沟道, 74 A, 80 V, 0.009 ohm, 10 V, 3 V
The is a N-channel MOSFET suitable for standard level gate drive sources. It is designed and qualified for use in a wide range of load switching, server power supplies, DC-to-DC converters and domestic equipment applications.
- .
- High efficiency due to low switching and conduction losses
- .
- -55 to 175°C Junction temperature range
PSMN012-80BS中文资料参数规格
技术参数
针脚数 3
漏源极电阻 0.009 Ω
极性 N-Channel
耗散功率 148 W
阈值电压 3 V
漏源极电压Vds 80 V
输入电容Ciss 2782pF @12VVds
工作温度Max 175 ℃
工作温度Min -55 ℃
耗散功率Max 148 W
封装参数
安装方式 Surface Mount
引脚数 3

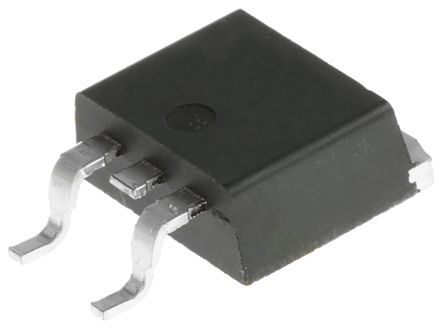

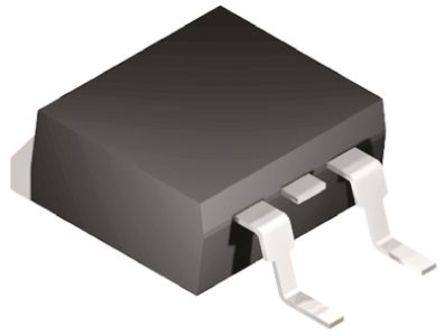

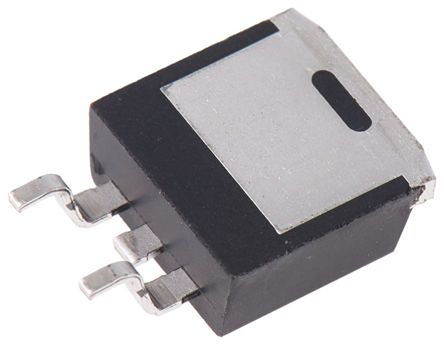

封装 TO-263
外形尺寸
长度 10.3 mm
宽度 11 mm
高度 4.5 mm
封装 TO-263
其他
产品生命周期 Unknown
制造应用 Consumer Electronics, Power Management, Motor Drive & Control, Communications & Networking, Industrial
符合标准
RoHS标准 Exempt
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
在线购买PSMN012-80BS
型号： PSMN012-80BS
制造商：
NXP
恩智浦
描述：NXP PSMN012-80BS 晶体管, MOSFET, N沟道, 74 A, 80 V, 0.009 ohm, 10 V, 3 V
