P16NM222MAB15

VISHAY  P16NM222MAB15  旋转电位器, 金属陶瓷, P16NM系列, 2.2 kohm, 线性, 1 转, 1 W, 面板

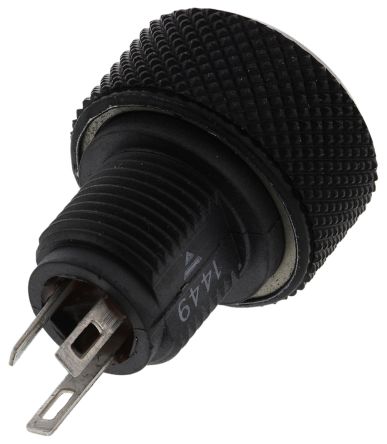

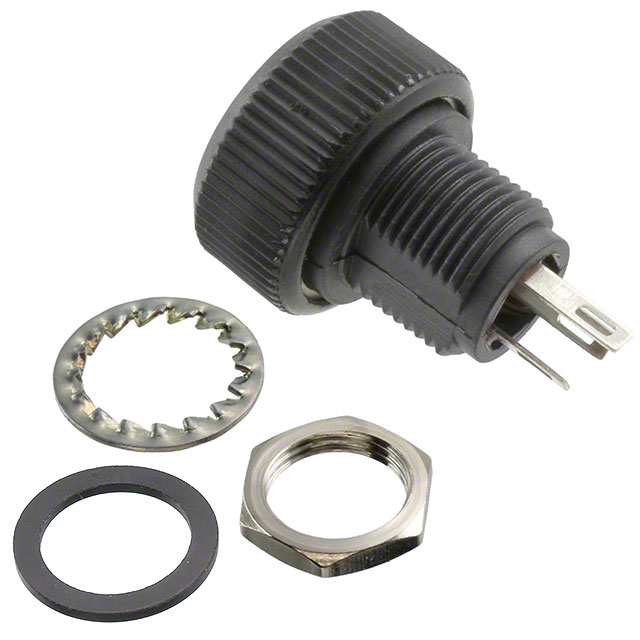

The Vishay P16NM series are cermet, through hole knob potentiometers. This unique design consists of a knob driving and incorporating a cermet potentiometer. The mounting hardware and terminals are situated on the back side of the panel. The P16NM series are mainly suitable for professional and industrial applications.

.

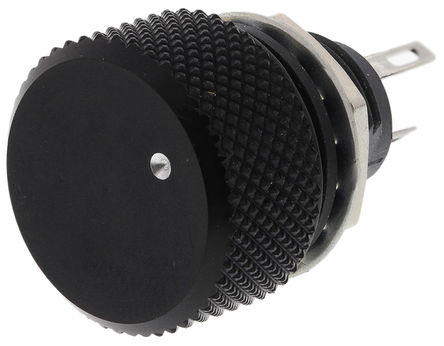

Low profile black metallic knob, 16mm round panel mount potentiometer

.

Sealing is IP67 rated

.

Resistance value ranges from 22ohm to 10Mohm

.

±20% tolerance

.

Maximum power rating is 1W

.

Operating temperature range -40°C to +125°C

.

Linear/logarithmic variations available

.

Compact integrated potentiometer

.

High dielectric strength of 2500VRMS

.

indent feeling 300˚mechanical travel
